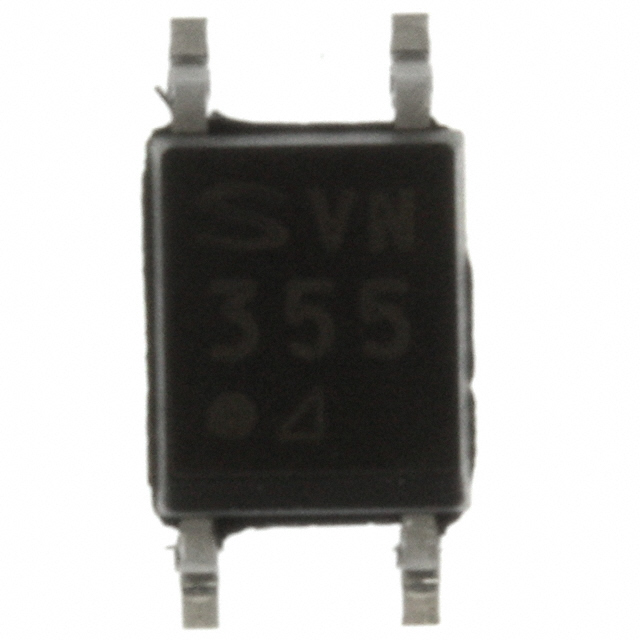

PC355NTJ000F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC355NTJ000F

Part No PC355NTJ000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV DARL 4-MINI-FLAT
Datasheet
PC355NTJ000F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Rise and Fall Time 60μs, 53μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 1086599-PC355NTJ000F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC355NTJ000F CAD Model

Description

The Sharp Microelectronics PC355NTJ000F is a Darlington output type optocoupler with a minimum DC current transfer ratio of 600% @ 1mA.

  • Output Type: Darlington
  • Minimum DC Current Transfer Ratio: 600% @ 1mA
  • Isolation Voltage: 3750Vrms
  • Maximum Output Voltage: 35V
  • Channel Output Current: 80mA
  • Continuous Forward Current: 50mA
  • Package: 4-Mini-Flat
  • Operating Temperature: -30°C to 100°C
  • Rise Time: 60μs
  • Fall Time: 53μs
  • Category: Isolator
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
