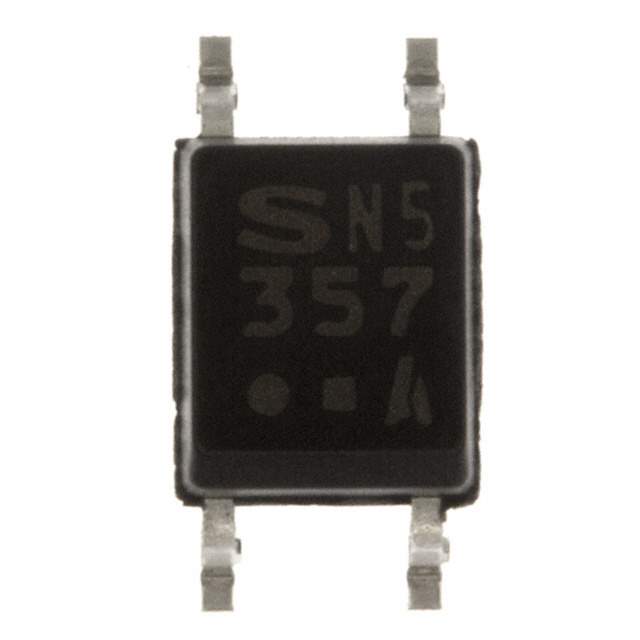

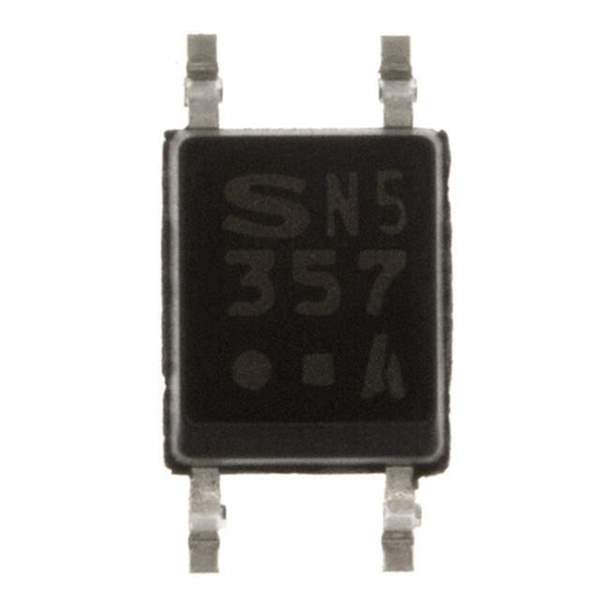

PC357N1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 1086601-PC357N1
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Ultra Librarian 3D Model Ultra Librarian PC357N1 CAD Model

Description

The Sharp Microelectronics PC357N1 is an obsolete(EOL) isolator with a minimum DC current transfer ratio of 80% @ 5mA and a maximum DC current transfer ratio of 160% @ 5mA.

  • Isolation Voltage: 3750Vrms
  • Continuous Forward Current: 50mA
  • Switching Turn-On Time: -
  • Switching Turn-Off Time: -
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Vce Saturation: 200mV
  • Maximum Output Voltage: 80V
  • Applications: Computers & computer peripherals, test & measurement, and signal processing
