PC357N7TJ00F Sharp Microelectronics

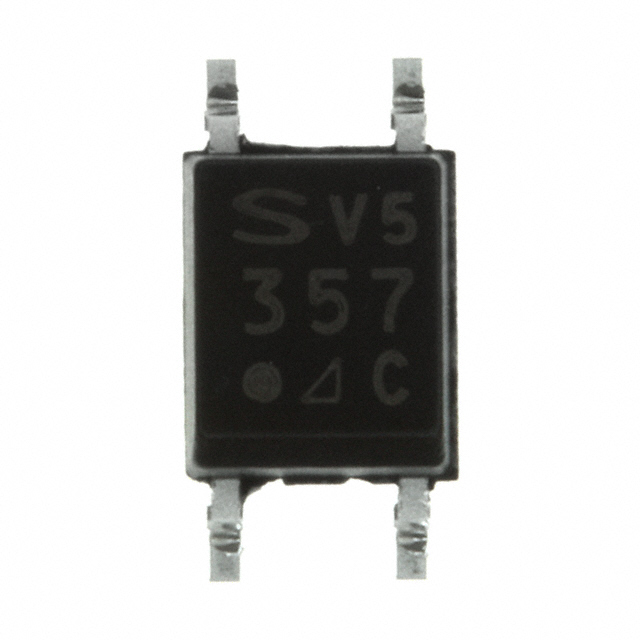

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 112884-PC357N7TJ00F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Ultra Librarian 3D Model Ultra Librarian PC357N7TJ00F CAD Model

Description

The Sharp Microelectronics electronic component with a Win Source Part Number of 112884-PC357N7TJ00F is a medium-popularity item.

  • Manufacturer: Sharp Microelectronics
  • Status: obsolete (EOL)
  • Mounting Type: surface-mount device (SMD)
  • Input Type: DC
  • Isolation Voltage: 3750Vrms
  • DC Current Transfer Ratio (min): 200% @ 5mA
  • DC Current Transfer Ratio (max): 600% @ 5mA
  • Temperature Range: -30°C to 100°C
  • Case/Package: 4-Mini-Flat
  • Continuous Forward Current-Max: 50mA
  • Applications: computers and computer peripherals, test and measurement, and signal processing
