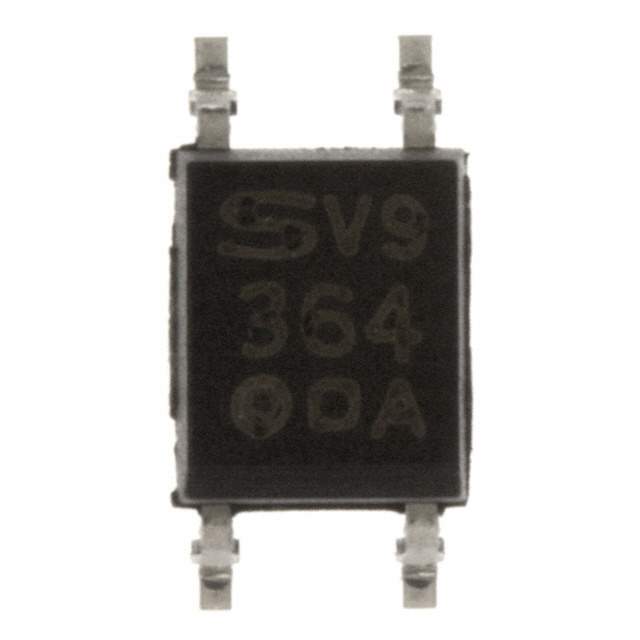

PC364NJ0000F Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Minimum) 50% @ 500μA
Current Transfer Ratio (Maximum) 400% @ 500μA
Rise / Fall Time (Typ) 4μs, 3μs
Input Type AC, DC
Output Type Transistor
Output Voltage MAX 80V
Output Current per Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 10mA
Vce Saturation (Maximum) 200mV
Operating Temperature Range -30°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-Mini-Flat
Win Source Part Number 1235705-PC364NJ0000F
Manufacturer Homepage sharp-world.com/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PC364NJ0000F CAD Model

Description

The PC364NJ0000F is a limited-supply optocoupler manufactured by Sharp Microelectronics.

  • Designed For: high isolation voltage and is suitable for various applications, such as power supplies, motor control, and lighting.
  • Supply and Demand Status: limited.
  • Features: high isolation voltage and can handle high current and voltage.
  • Qualities: reliable and efficient component that can be used in electronic devices that require high performance and stability.
  • Package: 4-SMD, Gull Wing
  • Temperature Range: -30°C to 100°C
