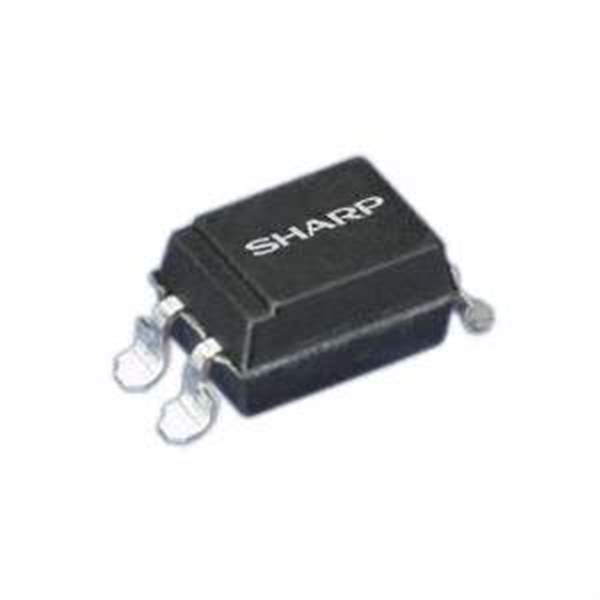

PC4H510NIP Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 40% @ 5mA
Maximum DC Current Transfer Ratio 240% @ 5mA
Rise and Fall Time 4μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 350V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -25°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SOP
Win Source Part Number 114957-PC4H510NIP
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC4H510NIP CAD Model

Description

The PC4H510NIP is an optocoupler from Sharp Microelectronics.

  • Category: Isolators
  • Popularity: Medium
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balance
  • Package: 4-SOP
  • Minimum DC Current Transfer Ratio: 40% @ 5mA
  • Maximum DC Current Transfer Ratio: 240% @ 5mA
  • Switching Turn-On and Turn-Off Time: -
  • Rise and Fall Time: 4μs, 5μs
  • Ideal Use: Use in electronic devices that require isolation and high-speed switching.
