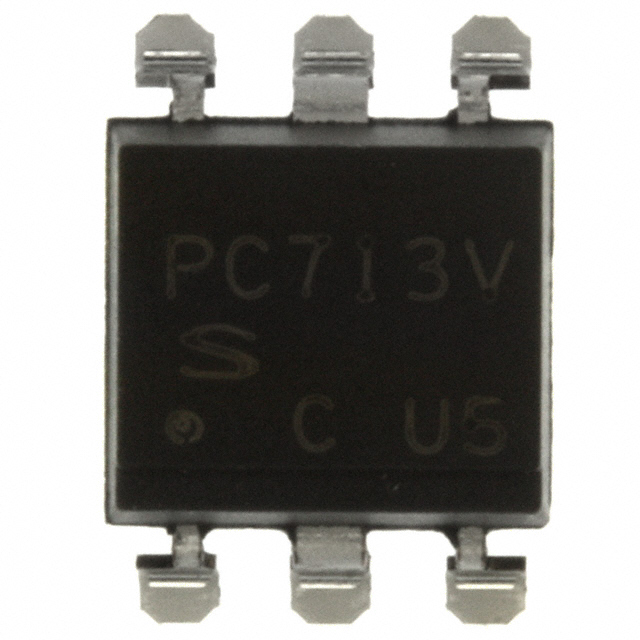

PC713V Sharp Microelectronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -25°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 344788-PC713V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC713V CAD Model

Description

The PC713V is an optical coupling isolator used in various electronic devices.

  • Category: Isolators
  • Manufacturer: Sharp Microelectronics
  • Win Source Part Number: 344788-PC713V
  • Package: Tube/Rail
  • Forward Voltage: 1.2V
  • Input Type: DC
  • Channels: 1
  • Vce Saturation (Max): 200mV
  • Isolation Voltage: 5000Vrms
  • Supply and Demand Status: Balanced
