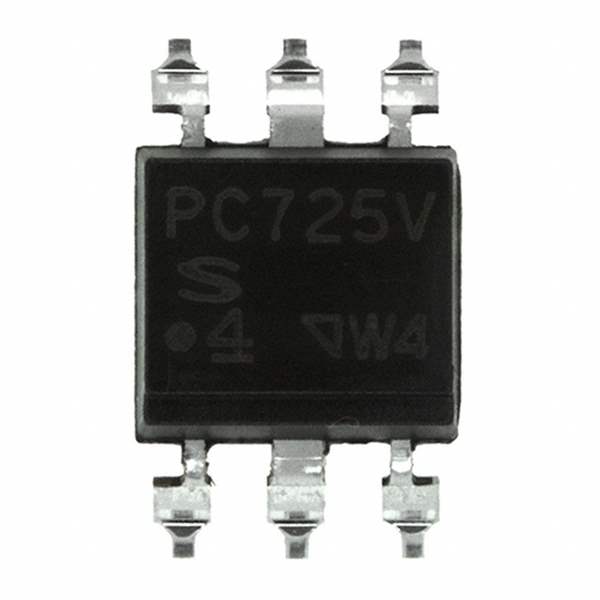

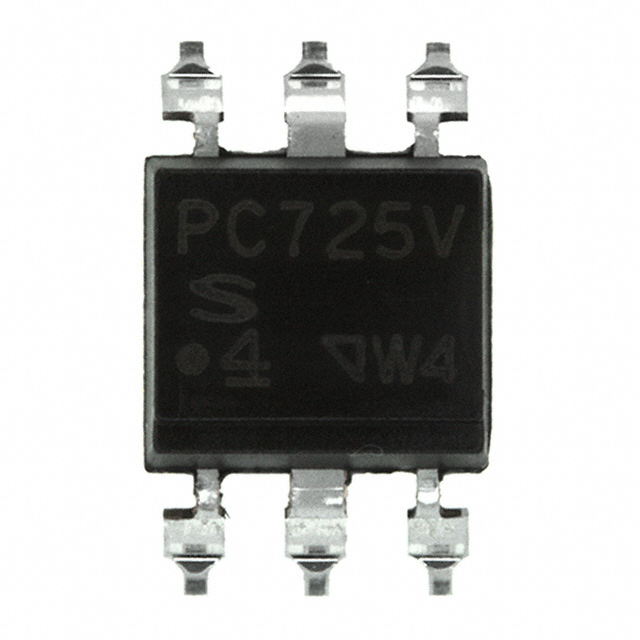

PC725V Sharp Microelectronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 1000% @ 1mA
Maximum DC Current Transfer Ratio 15000% @ 1mA
Rise and Fall Time 100μs, 20μs
Input Type DC
Output Type Darlington with Base
Maximum Output Voltage 300V
Channel Output Current 150mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -25°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 344791-PC725V
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC725V CAD Model

Description

The PC725V is an electronic component manufactured by Sharp Microelectronics.

  • Supply and Demand Status: Balanced
  • Type: Isolator
  • Output Type: Darlington
  • Input Type: Base
  • Maximum Output Voltage: 300V
  • Channel Output Current: 150mA
  • Status: Obsolete (EOL)
  • Temperature Range: -25°C to 100°C
  • Benefit: A great choice for electronic enthusiasts who want to build their circuits.
