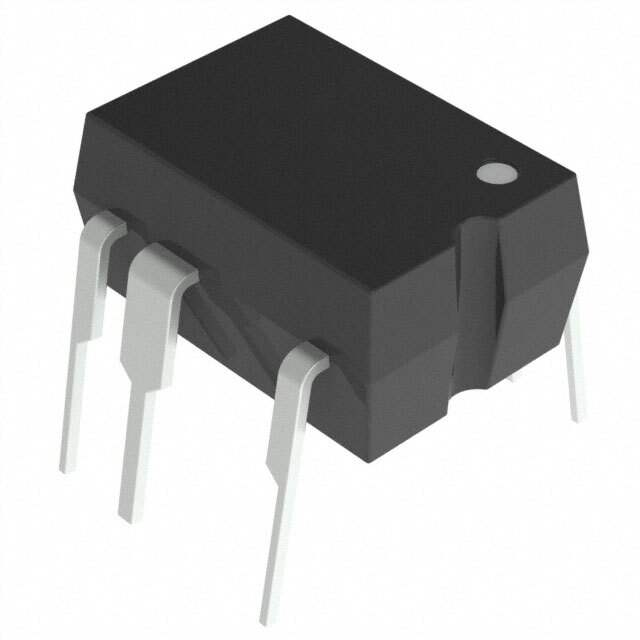

PR36MF51NSZF Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Discontinued
Output Type Triac, Power
Zero Crossing Circuit No
Number of Channels 1
Voltage - Isolation 4000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 100V/µs
Current - LED Trigger (Ift) (Max) 10mA
Current - On State (It (RMS)) (Max) 600 mA
Current - Hold (Ih) 25mA
Turn On Time 100µs (Max)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Temperature Range - Operating -30°C ~ 85°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Supplier Device Package 8-DIP
Approval Agency CSA, UR
Base Product Number PR36MF
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 748357-PR36MF51NSZF
Ultra Librarian 3D Model Ultra Librarian PR36MF51NSZF CAD Model

Description

The 748357-PR36MF51NSZF is a triac output optoisolator.

  • Output Type: Power Triac
  • Maximum Forward Current: 50 mA
  • Forward Voltage: 1.2V
  • Voltage Off State: 600V
  • Maximum On State Current: 600 mA
  • Voltage Isolation: 4000Vrms
  • Mounting Type: Through-hole
  • Package: 8-DIP
  • Operating Temperature: -30°C to 85°C
