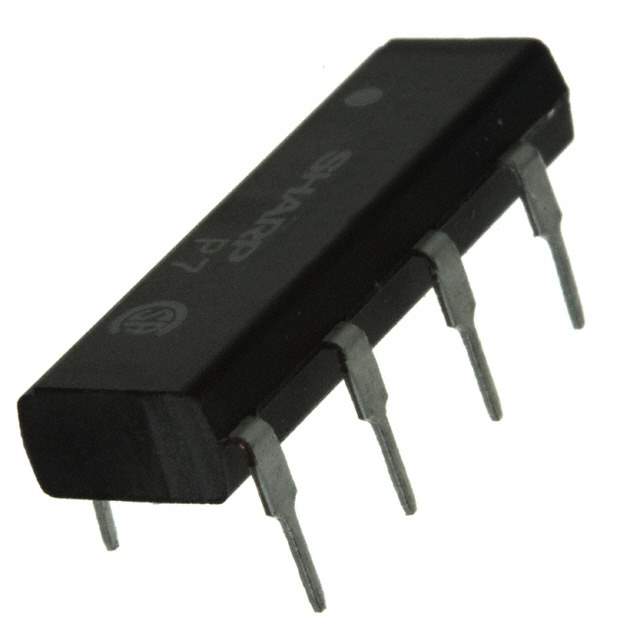

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit SPST-NO (1 Form A)
Output Type AC
Load Current 1.5A
Voltage - Input 1.2VDC
Voltage - Load 0 to 120 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 16-DIP
Relay Type Relay
Win Source Part Number 062811-S101DH1F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian S101DH1F CAD Model

Description

The Sharp Microelectronics 062811-S101DH1F Relay is a single-pole-single-throw (SPST) relay that has a load current of 1.5A and a voltage load range of 0 to 120V.

  • Load Current: 1.5A
  • Voltage Load: 0 to 120V
  • Input Voltage: 1.2VDC
  • Output Type: AC
  • Mounting: Through Hole
  • Termination Style: PC pin
  • Case/Package: 16-DIP
