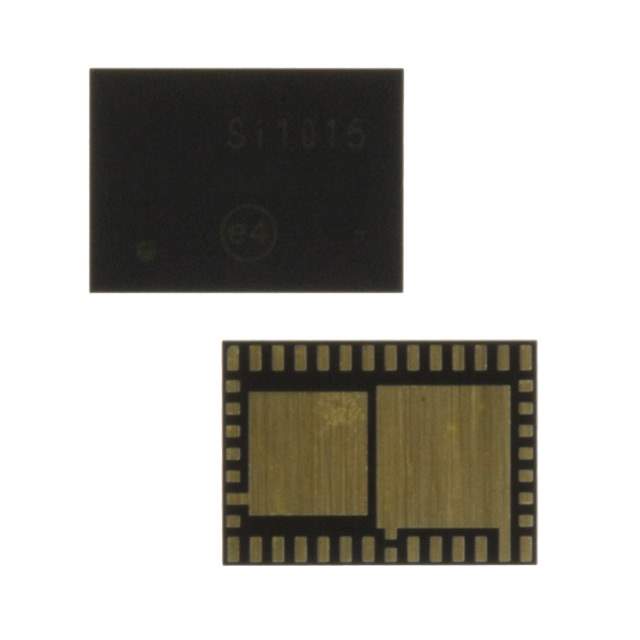

SI1002-ESB2-GM Real Image
Same model may have multiple batches, images only for reference.

SI1002-ESB2-GM

Part No SI1002-ESB2-GM
Manufacturer Silicon Labs
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU ISM<1GHZ 42WFQFN / IC RF TxRx + MCU General ISM < 1GHz EZRadioPro 240MHz ~ 960MHz 42-WFQFN Exposed Pad
Datasheet
SI1002-ESB2-GM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Silicon Labs
Package Tube
Product Status Obsolete
Type TxRx + MCU
RF Family/Standard General ISM < 1GHz
Protocol EZRadioPro
Modulation FSK, GFSK, OOK
Frequency 240MHz ~ 960MHz
Data Rate (Max) 256kbps
Power - Output 13dBm
Sensitivity -121dBm
Memory Size 64kB Flash, 4.35kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 22
Voltage - Supply 1.8V ~ 3.6V
Current - Receiving 18.5mA
Current - Transmitting 17mA ~ 30mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 42-WFQFN Exposed Pad
Supplier Device Package 42-QFN (5x7)
Base Product Number SI1002
Standard Package 43
MSL Level 2 (1 Year)
ECCN 5A991G
HTSUS 8542.31.0001
Win Source Part Number 1235755-SI1002-ESB2-GM
Ultra Librarian 3D Model Ultra Librarian SI1002-ESB2-GM CAD Model

Description

The SI1002-ESB2-GM is a RF/IF and RFID RF Transceiver IC that comes with a TxRx + MCU type.

  • Frequency Range: 240MHz ~ 960MHz
  • Protocol: EZRadioPro
  • Memory Size: 64kB Flash and 4.35kB RAM
  • Power Output: 13dBm
  • Sensitivity: -121dBm
  • Data Rate: 256kbps
  • Serial Interfaces: I2C, SPI, and UART
  • GPIOs: 22
  • Voltage Supply: 1.8V ~ 3.6V
  • Package: 42-WFQFN Exposed Pad
  • Operating Temperature: -40°C ~ 85°C
  • Manufacturer: Silicon Labs
  • Product Status: Obsolete
