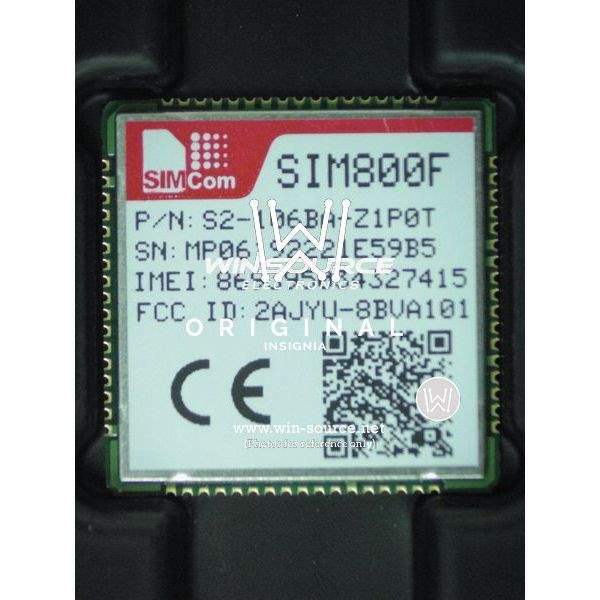

The SIM800F is a compact and reliable quad-band GSM/GPRS module manufactured by Simcom. This module is designed for a wide range of M2M (Machine-to-Machine) applications, providing voice, SMS, and data communication capabilities. It is a low-cost solution with a small footprint, making it ideal for applications where space is limited.

Applications

• Asset Tracking: Tracking the location of vehicles, containers, and other assets.
• Remote Monitoring: Monitoring remote equipment and sensors.
• Smart Metering: Collecting and transmitting data from smart meters.
• Security Systems: Providing wireless communication for alarm systems.
• Automotive Telematics: Integration into automotive telematics systems.

Features

• Quad-Band GSM/GPRS: Supports GSM 850MHz, 900MHz, 1800MHz, and 1900MHz bands.
• GPRS Multi-Slot Class 12: Provides high-speed data transfer over GPRS networks.
• SMS Support: Supports SMS sending and receiving.
• Voice Support: Supports voice calls.
• AT Command Interface: Easy to control using standard AT commands.
• Small Size: Compact size for space-constrained applications.
• Low Power Consumption: Designed for low power consumption in idle mode.

Benefits

• Global Connectivity: Quad-band support enables global roaming.
• High-Speed Data Transfer: GPRS multi-slot class 12 provides fast data transfer rates.
• Easy Integration: Standard AT command interface simplifies integration with microcontrollers.
• Low Cost: Cost-effective solution for M2M applications.
• Reliable Operation: Designed for reliable operation in various environments.

Additional Details

The SIM800F operates at a voltage range of 3.4V to 4.2V. It has a UART interface for communication with a microcontroller. It also supports TCP/IP protocol stack. Proper antenna design is critical for ensuring reliable wireless communication. The module comes in a surface-mount package. The SIM card holder is integrated into the module. It complies with GSM/GPRS standards. Specific application notes and reference designs are available from Simcom to assist with integration and development. The operating temperature range is usually specified to cover industrial applications. The module includes various network status indicators. The SIM800F family of GSM/GPRS modules offers various configurations and features to meet the requirements of different applications. It's an industry standard device.
