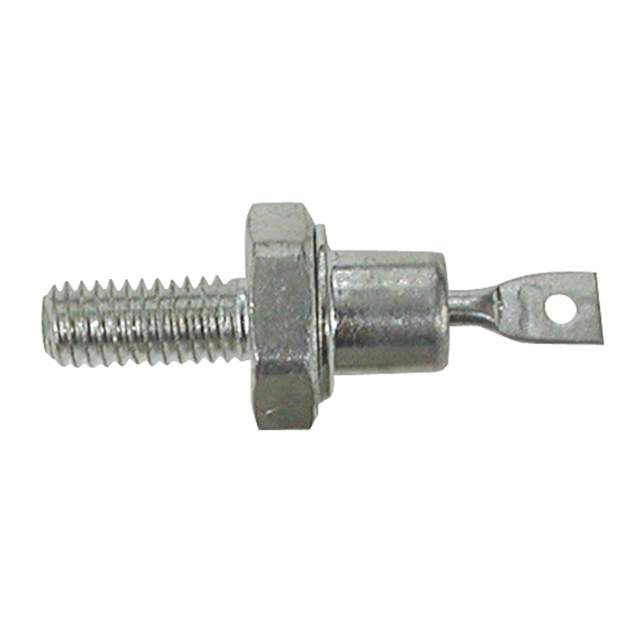

16F40 Solid State Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307468-16F40
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Mfr Solid State Inc.
Packaging Bulk
Part Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 16 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Ultra Librarian 3D Model Ultra Librarian 16F40 CAD Model

Description

  • High surge current capability
  • Stud cathode and stud anode version
  • Wide current range
  • Types up to 1200 V VRRM
  • Designed and qualified for industrial and consumer level
