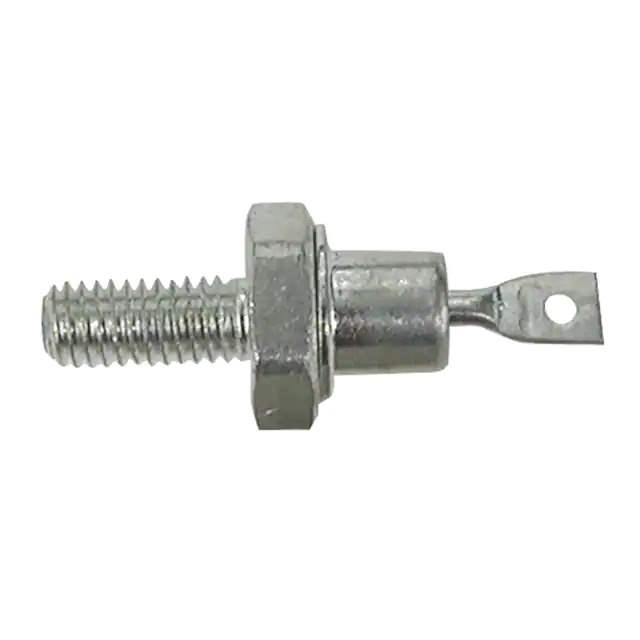

25FR120 Real Image
Same model may have multiple batches, images only for reference.

25FR120

Part No 25FR120
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 25A DO4
Datasheet
25FR120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 25 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 1200 V
Mounting Type Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 854800-25FR120
Ultra Librarian 3D Model Ultra Librarian 25FR120 CAD Model

Description

The 854800-25FR120 is a standard recovery single diode with a voltage rating of 1200V and an average rectified current of 25A. It is made by Solid State Inc.

  • Voltage Rating: 1200V
  • Average Rectified Current: 25A
  • Forward Voltage Drop: 1.2V @ 25A
  • Reverse Leakage Current: 10µA @ 1200V
  • Temperature Range: -65°C to 150°C
  • Mounting: Stud Mount
  • Standard Package: 10 pcs
