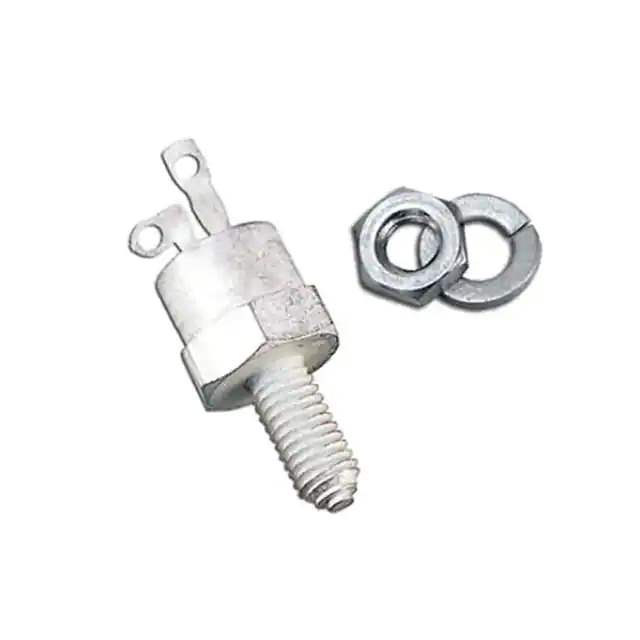

2N1776 Real Image
Same model may have multiple batches, images only for reference.

2N1776

Part No 2N1776
Manufacturer Solid State Inc.
Catalog SCRs - Single
Description TO64  8 AMP SCR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Solid State Inc.
Package Box
Product Status Active
Voltage - Off State 300 V
Voltage - Gate Trigger (Vgt) (Max) 2 V
Current - Gate Trigger (Igt) (Max) 15 mA
Voltage - On State (Vtm) (Max) 1.85 V
Current - On State (It (AV)) (Max) 4.7 A
Current - On State (It (RMS)) (Max) 7.4 A
Current - Hold (Ih) (Max) 8 mA
Current - Off State (Max) 4 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 60A @ 60Hz
SCR Type Standard Recovery
Temperature Range - Operating -65°C ~ 125°C (TJ)
Mounting Type Stud Mount
Package / Case TO-208AB, TO-64-3, Stud
Supplier Device Package TO-64
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 540949-2N1776
Ultra Librarian 3D Model Ultra Librarian 2N1776 CAD Model

Description

The 540949-2N1776 is a thyristor component designed for use in discrete semiconductor products.

  • Category: SCR
  • Voltage Off State: 300V
  • Current Hold (Ih): 8mA (Maximum)
  • Voltage Gate Trigger (Vgt): 2V (Maximum)
  • Current Gate Trigger (Igt): 15mA (Maximum)
  • On-State Voltage (Vtm): 1.85V (Maximum)
  • On-State Current (It (AV)): 4.7A (Maximum)
  • On-State Current (It (RMS)): 7.4A (Maximum)
  • Off-State Current: 4mA (Maximum)
  • Recovery Type: Standard
  • Mounting: Stud Mount Package
  • Temperature Range: -65°C to 125°C (TJ)
  • Manufacturer: Solid State Inc.
  • Status: Active
