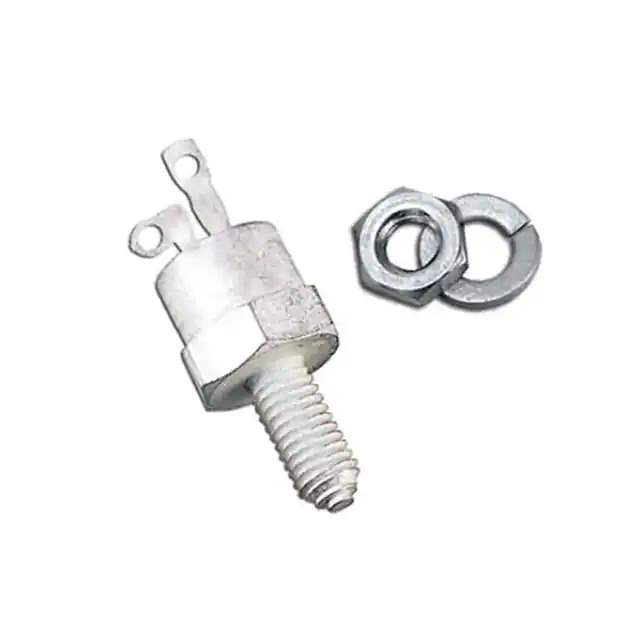

2N4170 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs
Mfr Solid State Inc.
Package Bulk
Product Status Active
Voltage - Off State 200 V
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 30 mA
Voltage - On State (Vtm) (Max) 2 V
Current - On State (It (RMS)) (Max) 8 A
Current - Hold (Ih) (Max) 30 mA
Current - Off State (Max) 10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 100A @ 60Hz
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 100°C (TJ)
Mounting Type Stud Mount
Package / Case TO-208AB, TO-64-3, Stud
Supplier Device Package TO-64
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 541156-2N4170
Ultra Librarian 3D Model Ultra Librarian 2N4170 CAD Model

Description

The 541156-2N4170 is a standard recovery SCR (silicon-controlled rectifier) used in discrete semiconductor applications.

  • Product Name: 541156-2N4170
  • Manufacturer: Solid State Inc.
  • Type: Standard Recovery SCR
  • Packaging: Bulk (10 pieces)
  • Holding Current (Max): 30 mA
  • Off-State Voltage: 200V
  • Gate Trigger Voltage: 1.5V
  • Gate Trigger Current: 30 mA
  • On-State Voltage @ Max Current: 2V
  • RMS Current (Max): 8A
  • Off-State Current: 10 µA
  • Non-Repetitive Surge Current (50Hz/60Hz): 100A
  • Mounting Type: Stud Mount
  • Package: TO-208AB, TO-64-3
  • Operating Temperature: -40°C to 100°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS Code: 8541.10.0080
  • Status: Active
