Same model may have multiple batches, images only for reference.

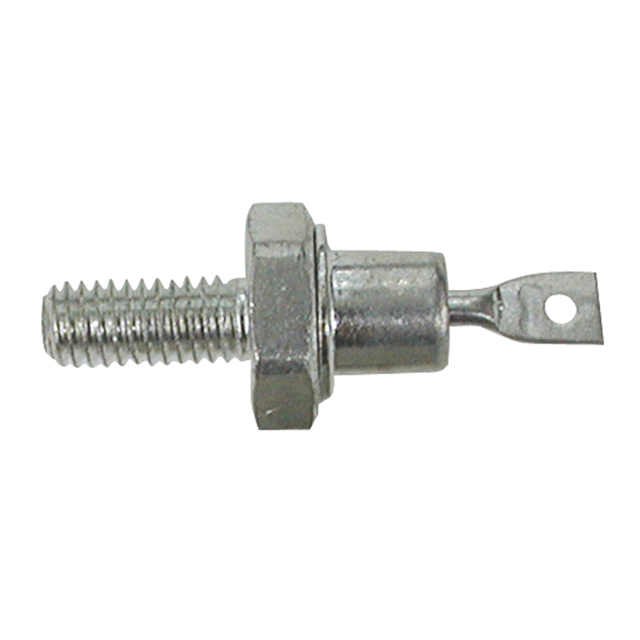

16F20 Real Image
Same model may have multiple batches, images only for reference.

16F20

Part No 16F20
Manufacturer Solid State Inc.
Catalog Diodes, Rectifiers - Single
Description 16 AMP SILCON RECTIFIER DO4 KK / Diode Standard 200 V 16A Stud Mount DO-4
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Solid State Inc.
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 16A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 16 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Mounting Stud Mount
Case / Package DO-203AA, DO-4, Stud
Supplier Device Package DO-4
Operating Temperature - Junction -65°C ~ 150°C
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 2383-16F20
Standard Package 10
Win Source Part Number 1324243-16F20
Ultra Librarian 3D Model Ultra Librarian 16F20 CAD Model

Description

The Solid State Inc. 16F20 is a standard recovery diode that is ideal for use in rectifier applications.

  • Maximum DC Reverse Voltage: 200 V
  • Average Rectified Current: 16A
  • Packaging: Bulk
  • Standard Package: 10
  • Mounting Type: Stud Mount
  • Case/Package: DO-4
