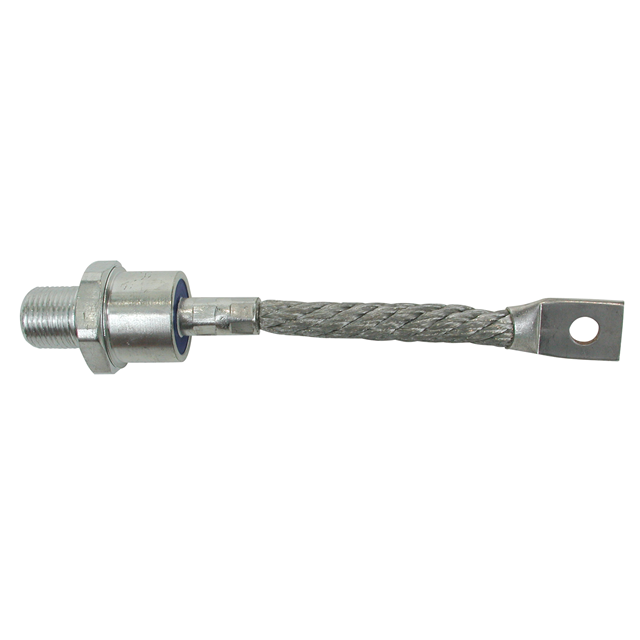

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Solid State Inc.
Package Bulk
Technology Standard, Reverse Polarity
Voltage - Forward (Vf) (Max) @ If 1.4 V @ 240 A
Current - Reverse Leakage @ Vr 60 mA @ 1600 V
Mounting Type Stud Mount
Package / Case DO-205AB, DO-9, Stud
Supplier Device Package DO-205AB (DO-9)
Operating Temperature - Junction -40°C ~ 180°C
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1337681-SKN240/16
Ultra Librarian 3D Model Ultra Librarian SKN240/16 CAD Model

Description

The Solid State Inc. SKN240/16 is a standard, reverse polarity diode rectifier that is stud mount with a DO-205AB (DO-9) package.

  • Maximum Voltage Forward (Vf): 1.4V @ 240A
  • Reverse Leakage Current: 60mA @ 1600V
  • Operating Temperature: -40°C to 180°C
  • REACH: Not Affected
