Products specifications

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr Solid State Inc.
Series *
Package Bulk
Product Status Obsolete
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1337676-SKN70/16
Ultra Librarian 3D Model Ultra Librarian SKN70/16 CAD Model

Description

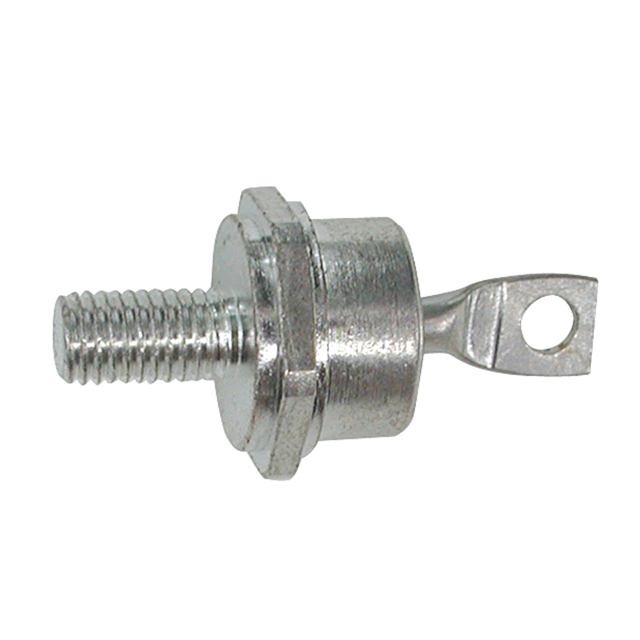

The SKN70/16 is a standard recovery rectifier diode manufactured by Solid State Inc. It is designed for general purpose rectification in power supplies and various electronic circuits. Characterized by its robust design and reliable performance, it is commonly used in applications requiring moderate current and voltage handling capabilities.

Applications

  • Power supplies
  • Battery chargers
  • General rectification circuits
  • Freewheeling diodes
  • Motor control circuits

Features

  • Standard recovery time: Offers good performance for general rectification purposes.
  • High surge current capability: Withstands transient current surges, enhancing reliability.
  • Low forward voltage drop: Minimizes power losses and improves efficiency.
  • High reliability: Ensures consistent performance over a long lifespan.
  • Robust package: Provides mechanical strength and thermal dissipation.

Benefits

  • Efficient rectification: Converts AC to DC power with minimal losses.
  • Reliable performance: Withstands voltage and current stresses, ensuring stable operation.
  • Extended lifespan: High reliability reduces the need for replacements, lowering maintenance costs.
  • Easy integration: Standard package simplifies installation in electronic circuits.
  • Versatile application: Suitable for various rectification needs in different electronic devices.

Additional Details

The SKN70/16 diode typically has a voltage rating of 1600V and a forward current rating of 70A. It is housed in a standard package that facilitates efficient heat dissipation. Consult the Solid State Inc. datasheet for precise electrical characteristics, thermal resistance, and package dimensions.
