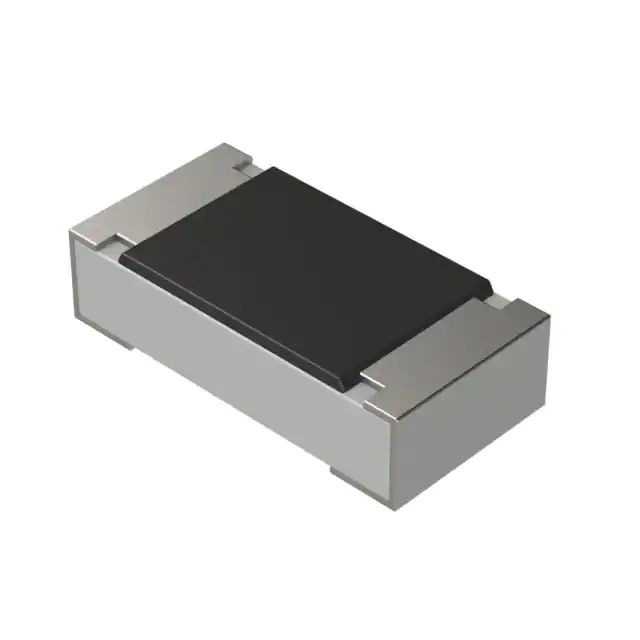

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSR
Package Tape & Reel
Product Status Active
Resistance 200 mOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375416-CSR0603FKR200
Ultra Librarian 3D Model Ultra Librarian CSR0603FKR200 CAD Model

Description

The CSR0603FKR200 is a chip resistor suitable for current sensing applications manufactured by Stackpole Electronics Inc.

  • Resistance: 200 mOhms
  • Power Rating: 0.125W (1/8W)
  • Composition: Thick Film
  • Tolerance: ±1%
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Seated Height: 0.022" (0.55mm)
  • Operating Temperature: -55°C ~ 155°C
  • Series: CSR
  • Package / Case: 0603 (1608 Metric)
  • Temperature Coefficient: ±300ppm/°C
