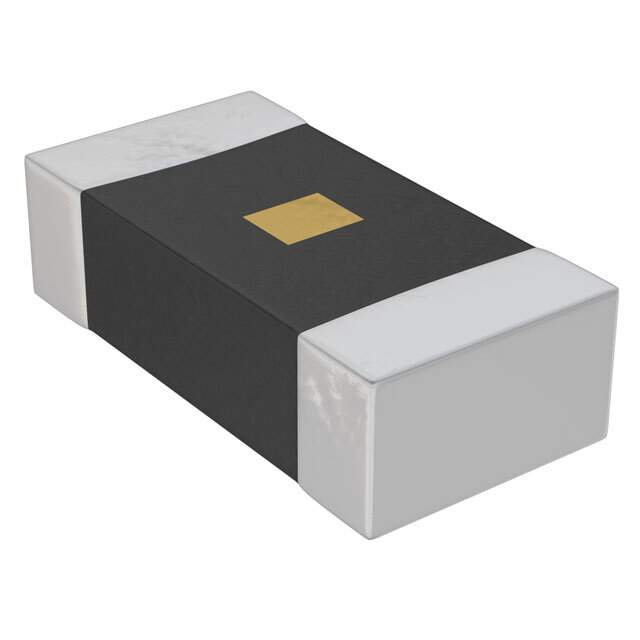

KTR25JZPF1204 Real Image
Same model may have multiple batches, images only for reference.

KTR25JZPF1204

Part No KTR25JZPF1204
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES SMD 1.2M OHM 1% 1/3W 1210  /  1.2 MOhms ±1% 0.333W, 1/3W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, High Voltage Thick Film
Datasheet
KTR25JZPF1204 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Rohm Semiconductor
Series KTR
Package Tape & Reel
Resistance 1.2 MOhms
Tolerance ±1%
Power (Watts) 0.333W, 1/3W
Composition Thick Film
Features Automotive AEC-Q200, High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names RHM1053TR,RHM1053DKR,RHM1053CT
Standard Package 4,000
Win Source Part Number 1014898-KTR25JZPF1204
Ultra Librarian 3D Model Ultra Librarian KTR25JZPF1204 CAD Model

Description

The KTR25JZPF1204 resistor is a chip resistor that belongs to the category of surface mount resistors, manufactured by Rohm Semiconductor.

  • Series: KTR
  • Features: Automotive AEC-Q200 and high voltage
  • Package: Tape and Reel
  • Standard Package: 4,000
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Ratings: AEC-Q200
  • Failure Rate: -
  • Power: 0.333W or 1/3W
  • Composition: Thick Film
  • Number of Terminations: 2
  • Resistance: 1.2 MOhms
  • Package/Case: 1210 (3225 Metric)
  • Supplier Device Package: 1210
  • Temperature Range: -55°C ~ 155°C
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8533.21.0030
