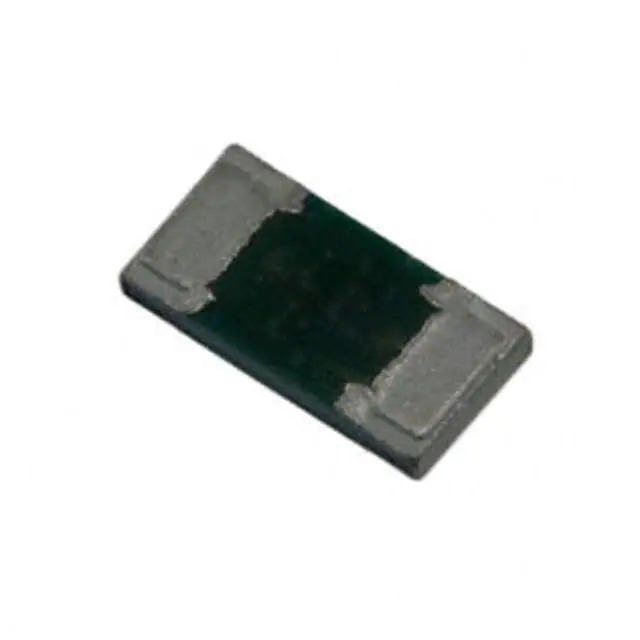

CSRF1206FT5L00 Stackpole Electronics Inc.
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRF
Package Tape & Reel
Product Status Active
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.033" (0.85mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375230-CSRF1206FT5L00
Ultra Librarian 3D Model Ultra Librarian CSRF1206FT5L00 CAD Model

Description

The CSRF1206FT5L00 is a chip resistor from Stackpole Electronics Inc.

  • Resistance: 5 mOhms
  • Power Rating: 1W
  • Series: CSRF
  • Application: Automotive AEC-Q200, Current Sensing, Moisture Resistant
  • Package: Tape and Reel
  • Temperature Coefficient: ±100ppm/°C
  • Operating Temperature: -55°C to 170°C
  • Size: 3.10mm x 1.55mm
  • Height: 0.85mm
  • Mounting Type: Surface Mount
