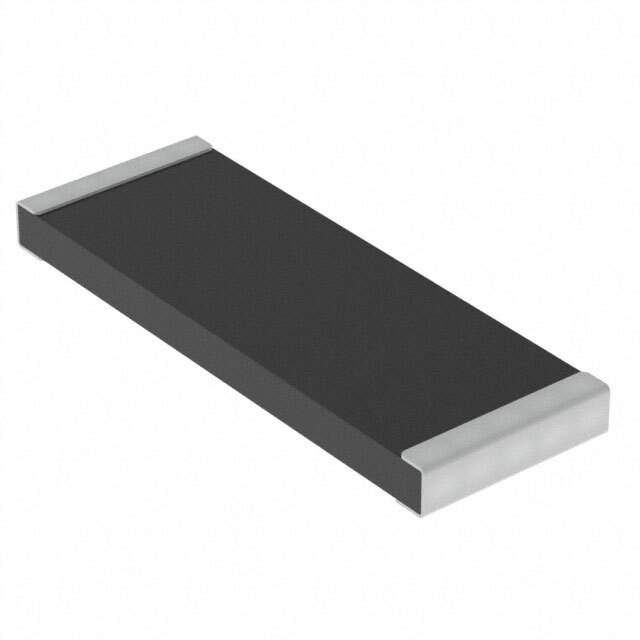

RMCS0805FT806K Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RMCS
Package Tape & Reel
Resistance 806 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Anti-Sulfur
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
ECCN EAR99
HTSUS 8533.21.0030
Other Names 738-RMCS0805FT806KDKR,738-RMCS0805FT806KCT,738-RMCS0805FT806KTR
Standard Package 5,000
Win Source Part Number 1108553-RMCS0805FT806K
Ultra Librarian 3D Model Ultra Librarian RMCS0805FT806K CAD Model

Description

The Stackpole Electronics Inc RMCS0805FT806K is a chip resistor that is surface mounted.

  • Series: RMCS
  • Feature: Anti-Sulfur
  • Package: Tape & Reel
  • Seated Height: 0.026" (0.65mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W, 1/8W
  • Material: Thick Film
  • Package/Case: 0805 (2012 Metric)
  • Terminations: 2
  • Resistance: 806 kOhms
  • Supplier Device Package: 0805
  • Operating Temperature: -55°C to 155°C
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
