STMicroelectronics TYN608RG Thyristor SCR
The TYN608RG from STMicroelectronics is a robust and reliable silicon-controlled rectifier (SCR) designed to manage power control and rectification for a wide range of applications. This SCR is a pivotal component in circuits where high surge capability and high voltage are required. It is especially suited for applications in motor control, industrial lighting, and overvoltage crowbar protection.

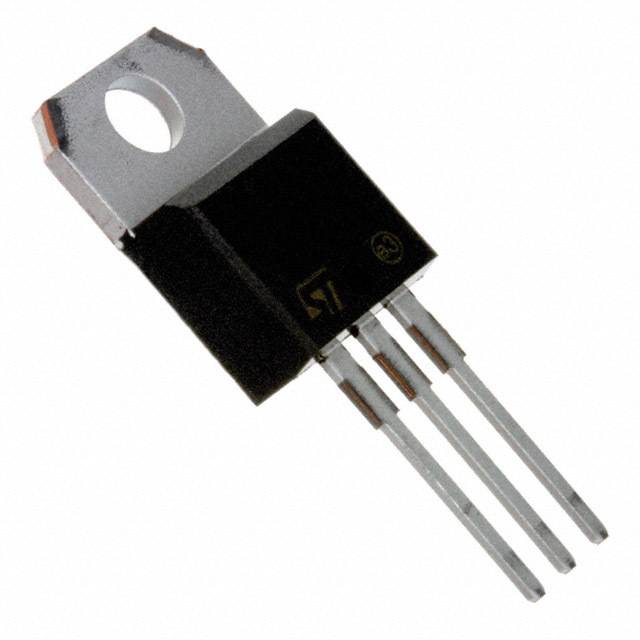

The device is housed in a TO-220AB non-insulated package, which provides an optimal trade-off between high current handling capability and compactness. With its standardized outline, the TYN608RG is easy to integrate into various designs, ensuring compatibility with a wide array of PCB layouts and thermal management systems.
Key Features of the TYN608RG:
- High Surge Capability: The TYN608RG can handle surge currents up to 80A, making it an excellent choice for applications that experience short-duration overloads.
- Voltage Rating: With a repetitive peak off-state voltage (VDRM/VRRM) of 600V, it can be used effectively in circuits with high operating voltages.
- On-State RMS Current: It boasts an on-state RMS current of 8A, allowing for significant power handling in a compact form factor.
- Gate Trigger Current: The device has a low gate trigger current (IGT) of less than 25mA, ensuring that it can be easily triggered with minimal power.
- Thermal Resistance: It offers excellent thermal resistance characteristics, which aid in maintaining stability and performance under varying environmental conditions.
Moreover, the TYN608RG is characterized by its high holding current of 40mA, which helps to prevent unintended turn-off due to transient noises. Its dynamic characteristics include a fast switching speed, which is essential for efficient operation in rectifiers and phase control applications.
STMicroelectronics has designed the TYN608RG to meet stringent quality and reliability standards. Its rugged design is intended to provide long-term reliability, making it a preferred choice for designers looking for a dependable SCR solution. Whether it's for home appliances, power tools, or industrial automation, the TYN608RG is engineered to deliver performance and durability.
For detailed specifications and application notes, designers and engineers are encouraged to refer to the official datasheet and technical documentation provided by STMicroelectronics.
