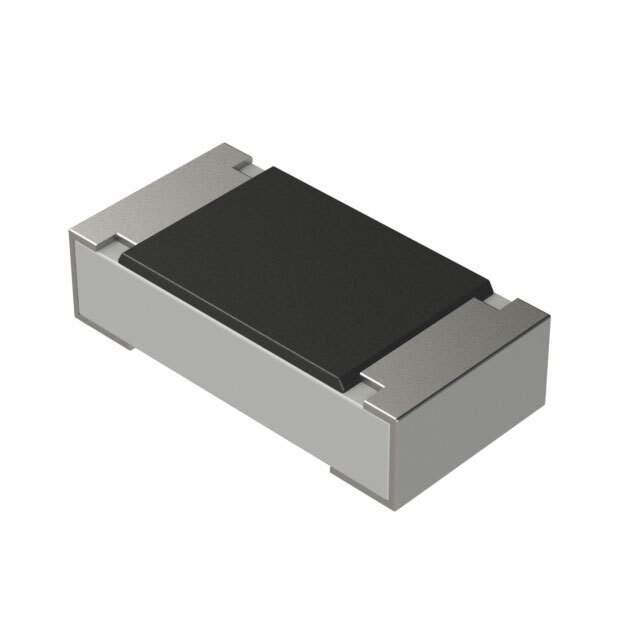

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Resistance 250 mOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±300ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSR0603FKR250TR,CSR1/80.25FICT-ND,CSR1/80.25FIDKR,CSR1/80.25FITR,CSR1/80.25FITR-ND,CSR0603FKR250DKR,CSR1/80.25FI-ND,CSR 1/8 0.25 1% I,CSR1/80.25FICT,CSR0603FKR250CT,CSR1/80.251%I,CSR1/80.251%I-ND,CSR1/80.25FIDKR-ND,CSR1/80.25FI
Standard Package 1,000
Win Source Part Number 1326173-CSR0603FKR250
Ultra Librarian 3D Model Ultra Librarian CSR0603FKR250 CAD Model

Description

The CSR0603FKR250 is a chip resistor designed for surface mount applications.

  • Manufacturer: Stackpole Electronics
  • Power: 1/8 watt, 0.125W
  • Resistance: 250 mOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±300ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Feature: Current Sense Resistor
  • Size: 0.063 inches x 0.031 inches
  • Height: 0.022 inches
  • Package: 0603 (1608 Metric)
