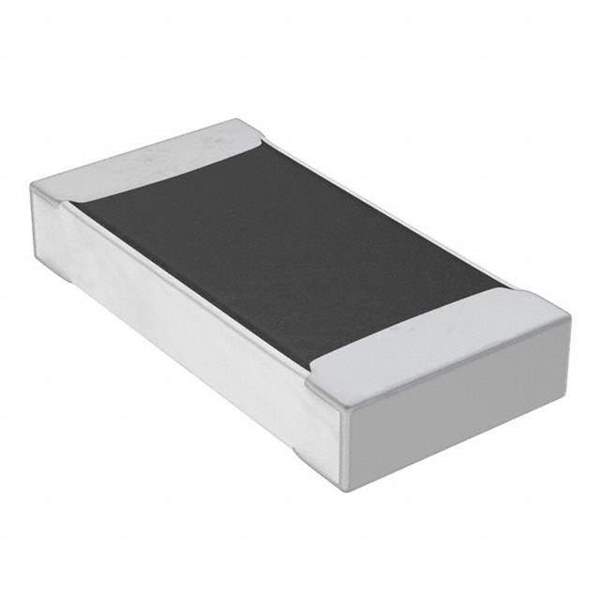

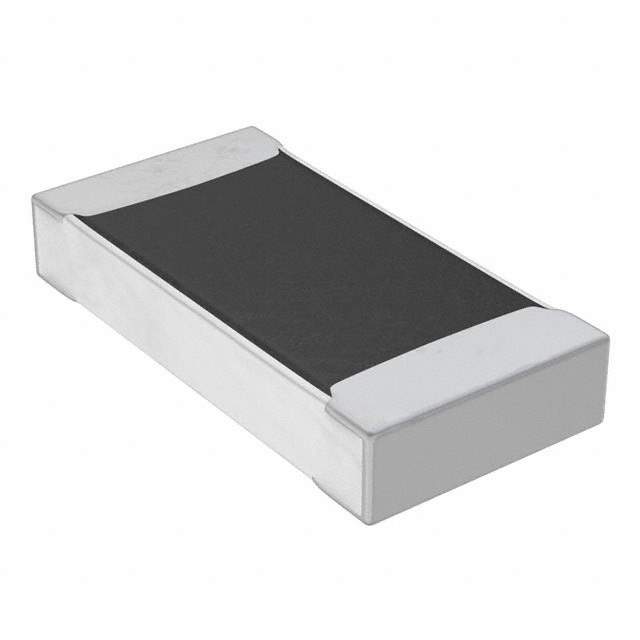

CSR1206FTR500 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSR
Package Tape & Reel
Resistance 500 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.120" L x 0.061" W (3.05mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Other Names CSR1/20.5FR,CSR1206FTR500TR,CSR1206FTR500CT,CSR1206FTR500DKR,CSR1/20.51%R,CSR1/20.5FR,CSR 1/2 0.5 1% R,CSR1206FTR500,CSR1/20.51%R
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1237007-CSR1206FTR500
Ultra Librarian 3D Model Ultra Librarian CSR1206FTR500 CAD Model

Description

The Stackpole Electronics Inc CSR1206FTR500 is a chip resistor - surface mount that belongs to the CSR series.

  • Series: CSR
  • Package: Tape and Reel
  • Height: 0.026 inches
  • Tolerance: +/- 1 percent
  • Temperature Coefficient: +/- 100ppm/degree Celsius
  • Power: 0.5W or 1/2W
  • Material: Thick film
  • Terminations: 2
  • Resistance: 500 mOhms
  • Package/Case: 1206 (3216 Metric)
  • Temperature Range: -55 to 155 degrees Celsius
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
