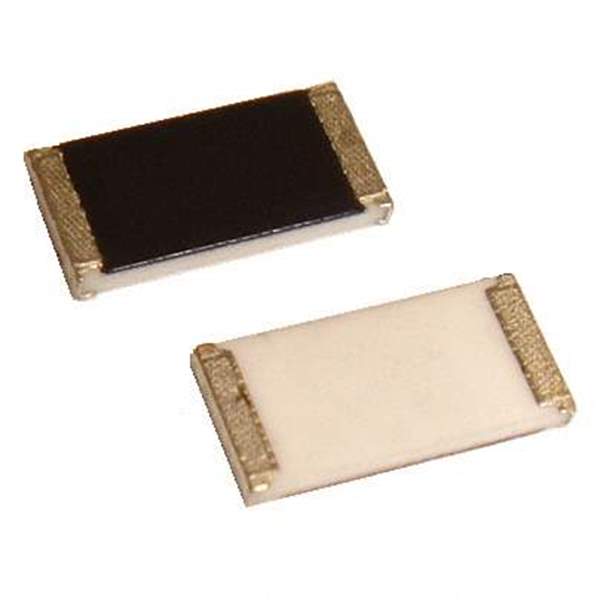

CSRN2512FK22L0 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Resistance 22 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.124" W (6.35mm x 3.15mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number CSRN20.0221%I,CSRN20.0221%I-ND,CSRN20.022FI,CSRN20.022FI-ND,CSRN 2 0.022 1% I
Standard Package 1,000
Win Source Part Number 1331430-CSRN2512FK22L0
Ultra Librarian 3D Model Ultra Librarian CSRN2512FK22L0 CAD Model

Description

The Stackpole Electronics Inc CSRN2512FK22L0 is a chip resistor with a resistance of 22 mOhms and a power rating of 2W.

  • Manufacturer: Stackpole Electronics Inc
  • Type: chip resistor
  • Resistance: 22 mOhms
  • Power Rating: 2W
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Designed for: use in automotive AEC-Q200 and current sensing applications
  • Size: 0.250" L x 0.124" W (6.35mm x 3.15mm)
  • Height: 0.028" (0.70mm)
  • Composition: thick film
  • Case/Package: 2512 (6432 Metric)
  • Mounting: surface mountable
  • Temperature Range: -55°C to 155°C
  • Compliance: RoHS3 compliant
  • Standard Package: 1,000
