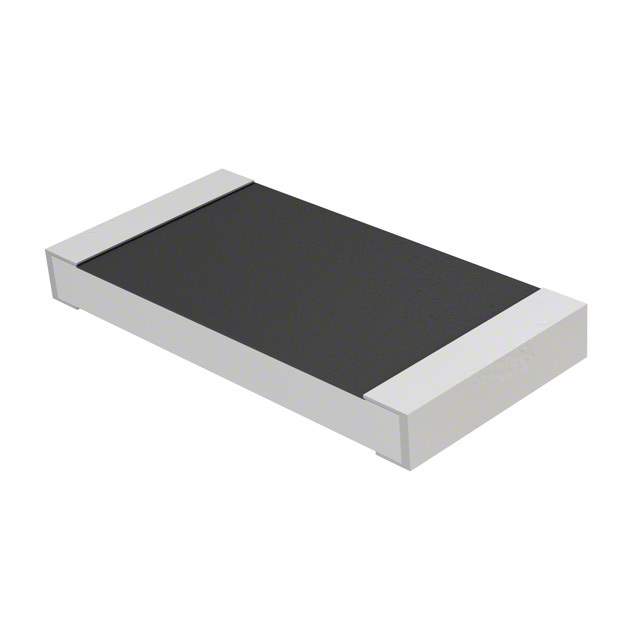

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Stackpole Electronics Inc
Packaging Reel - TR
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 2010 (5025 Metric)
Supplier Device Package 2010
Ratings AEC-Q200
Size / Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number RMCF1/2105%RTR,RMCF1/2105%RCT-ND,RMCF2010JT10R0DKR,RMCF1/210JRCT-ND,RMCF1/2105%RDKR-ND,RMCF1/210JRDKR,RMCF1/2105%RTR-ND,RMCF2010JT10R0CT,RMCF1/210JRCT,RMCF 1/2 10 5% R,RMCF1/2105%R,RMCF1/210JRDKR-ND,RMCF1/2105%RCT,RMCF1/2105%R-ND,RMCF1/210JRTR-ND,RMCF1/210JRTR,RMCF2010JT10R0TR,RMCF1/2105%RDKR
Standard Package 4,000
Win Source Part Number 1330620-RMCF2010JT10R0
Ultra Librarian 3D Model Ultra Librarian RMCF2010JT10R0 CAD Model

Description

The Stackpole Electronics Inc RMCF2010JT10R0 is a chip resistor that is designed for use in surface mount technology.

  • Size/Dimension: 0.197" L x 0.098" W (5.00mm x 2.50mm)
  • Height: 0.028" (0.70mm)
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.75W
  • Resistance: 10 Ohms
  • Series: AEC-Q200
