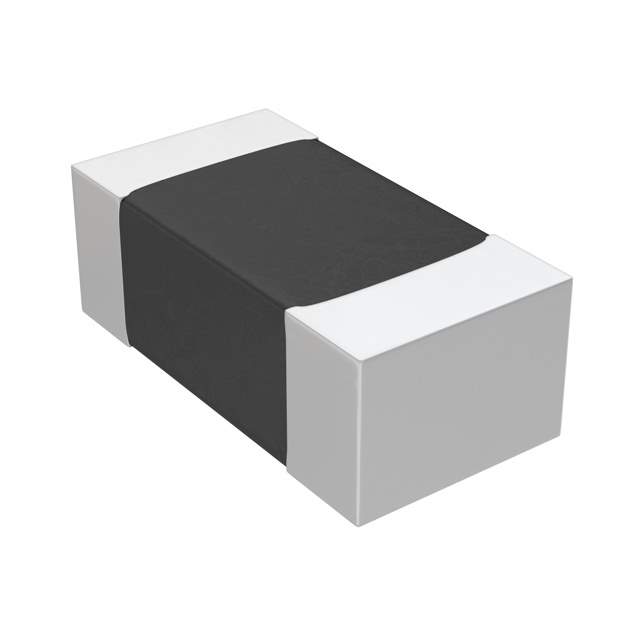

RNCF0402BTE15K0 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCF
Package Tape & Reel
Resistance 15 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
Base Product Number RNCF0402B
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339651-RNCF0402BTE15K0
Ultra Librarian 3D Model Ultra Librarian RNCF0402BTE15K0 CAD Model

Description

The RNCF0402BTE15K0 is a chip resistor designed for surface mount applications.

  • Manufacturer: Stackpole Electronics Inc
  • Series: RNCF
  • Application: Automotive
  • Package: Tape and Reel
  • Standard Package: 10,000
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.063W or 1/16W
  • Composition: Thin Film
  • Resistance: 15 kOhms
  • Package Size: 0402 (1005 Metric)
  • Operating Temperature: -55°C to 155°C
