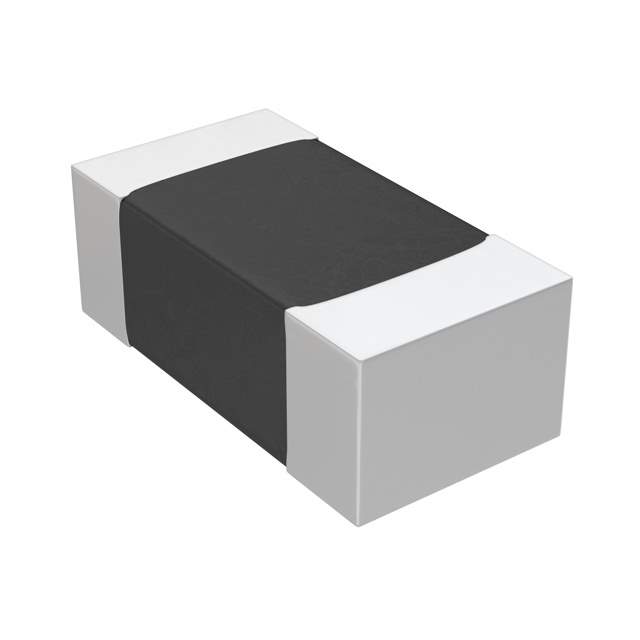

RNCF0402DTE18K2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series RNCF
Package Tape & Reel
Resistance 18.2 kOhms
Tolerance ±0.5%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
Base Product Number RNCF0402D
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1351977-RNCF0402DTE18K2
Ultra Librarian 3D Model Ultra Librarian RNCF0402DTE18K2 CAD Model

Description

The Stackpole Electronics Inc RNCF series chip resistor is a surface mount type with an automotive AEC-Q200 feature. Stackpole Electronics Inc

  • Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Maximum Seated Height: 0.014" (0.35mm)
  • Tolerance: ±0.5%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.063W, 1/16W
  • Resistance: 18.2kOhms
  • Composition: Thin Film
  • Terminations: 2
  • Package/Case: 0402 (1005 Metric)
  • REACH: Unaffected
  • Temperature Range: -55°C to 155°C
