Products specifications

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr STMicroelectronics
Series 1.5KE, TRANSIL™
Package Cut Tape (CT)Tape & Box (TB)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 6.4V
Voltage - Breakdown (Min) 7.13V
Voltage - Clamping (Max) @ Ipp 14.5V
Current - Peak Pulse (10/1000µs) 690A (8/20µs)
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 4250pF @ 1MHz
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Base Product Number 1.5KE7V5
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 853493-1.5KE7V5CA
Ultra Librarian 3D Model Ultra Librarian 1.5KE7V5CA CAD Model

Description

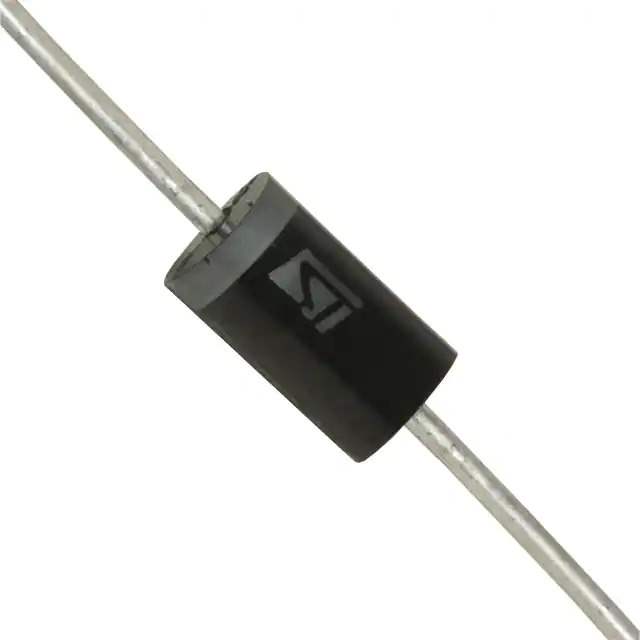

The 1.5KE7V5CA is a high-quality Transient Voltage Suppressor (TVS) diode from STMicroelectronics, designed to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. This robust component is part of the 1.5KE series, known for their reliability and efficiency in safeguarding circuits.

Key Features

  • Transient Protection: The 1.5KE7V5CA offers excellent clamping capability, with a peak pulse power dissipation of 1500W at 10/1000μs waveform, ensuring high surge protection in a compact package.
  • Reverse Standoff Voltage: With a reverse standoff voltage of 6.40V, it is well-suited for a variety of applications that require voltage regulation and transient suppression.
  • Bi-directional Clamping: As a bidirectional TVS diode, the 1.5KE7V5CA provides symmetric protection for AC applications or where the polarity is undefined, ensuring versatility in usage.
  • High Temperature Range: This diode operates effectively over a wide temperature range from -55°C to +175°C, making it suitable for harsh environments.
  • Compliance: It meets the ISO 7637-2 pulse 1 and 3a standard and is compliant with MIL-STD-883, Method 3015.7.

Applications

The 1.5KE7V5CA is ideal for protecting voltage-sensitive components in a wide array of applications, including:

  • Industrial systems
  • Communication devices
  • Automotive electronics
  • Consumer electronics
  • Power supply units

Product Specifications

Parameter Value Reverse Standoff Voltage (V<sub>RWM) 6.40V Breakdown Voltage (V<sub>BR) 7.13V to 7.88V Peak Pulse Power Dissipation (P<sub>PPM) 1500W Operating Temperature Range -55°C to +175°C

Overall, the STMicroelectronics 1.5KE7V5CA TVS diode is a reliable and versatile solution for circuit protection in a diverse range of electronic applications, ensuring long-term stability and performance of your devices.
