Products specifications

Categories Discrete Semiconductor Products
Manufacturer STMicroelectronics
Packaging Tube
Status Obsolete
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 20A
Voltage - Collector Emitter Breakdown (Maximum) 100V
Vce Saturation (Maximum) at Ib, Ic 3V at 200mA, 20A
Current - Collector Cutoff (Maximum) 1mA
DC Current Gain (hFE) (Minimum) at Ic, Vce 750 at 10A, 3V
Maximum Power 160W
Temperature Range - Operating 200°C
Mounting Style Chassis Mount

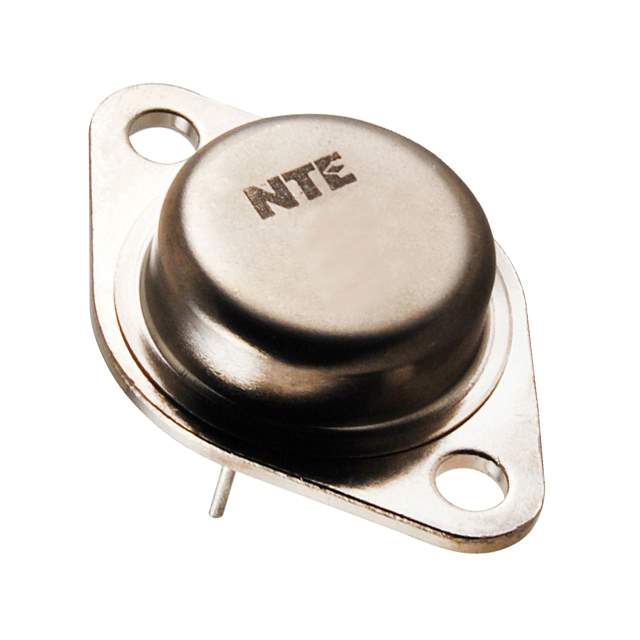

Manufacturer Package TO-204AA, TO-3
Supplier Device Package TO-3
Family Part Number 2N6284
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1124093-2N6284
Manufacturer Homepage www.mospec.com.tw
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Audio, Industrial
Ultra Librarian 3D Model Ultra Librarian 2N6284 CAD Model

Description

The 2N6284 is a robust silicon NPN power transistor designed and manufactured by STMicroelectronics, a global leader in semiconductor solutions. This high-power transistor is specifically engineered for a wide range of applications that require reliable and efficient power control and amplification.

Key Features

  • High Current Capacity: The 2N6284 is capable of handling high collector currents up to 20A, making it suitable for high-power switching and amplification applications.
  • High Voltage Rating: With a collector to emitter voltage (VCEO) of 80V, this transistor can safely operate at higher voltages, which is essential for industrial and commercial power systems.
  • Complementary PNP Type: The 2N6284 has a complementary PNP type, the 2N6287, allowing for flexibility in designing push-pull amplifiers and other complementary circuits.
  • Low Saturation Voltage: The device features a low collector-emitter saturation voltage, which reduces power losses and improves efficiency in switching applications.

Applications

The 2N6284 is versatile and can be used in a variety of applications, including:

  • Audio power amplifiers
  • Switching regulators
  • DC-DC converters
  • Motor controls
  • Power inverters

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The 2N6284 is built to meet stringent quality standards, ensuring reliable performance even in harsh conditions. It is designed for a wide operating temperature range, making it suitable for industrial environments.

Technical Specifications

Parameter Value Collector-Emitter Voltage (VCEO) 80V Collector Current (IC) 20A Power Dissipation (PD) 160W Operating Temperature Range (TJ) -65°C to +200°C Package Type TO-3

For detailed product specifications, technical datasheets, and support, visit the STMicroelectronics official website or contact their customer support team.
