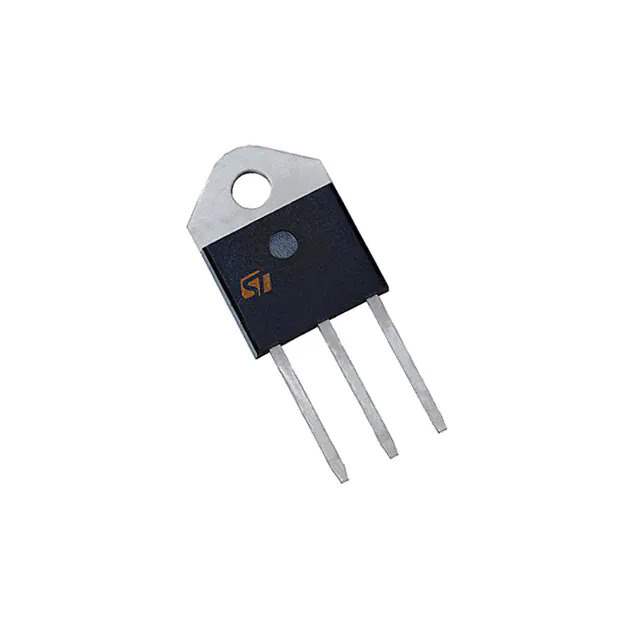

STMicroelectronics BTA26-600BW Triac

The BTA26-600BW is a high-power triac manufactured by STMicroelectronics, designed to manage AC loads in a variety of applications. This robust semiconductor device is capable of switching and controlling high-voltage AC power in both domestic and industrial settings. The BTA26-600BW is particularly well-suited for applications requiring high bidirectional transient and blocking voltage capability, and it is commonly used in motor control circuits, lighting systems, and heating regulation.

Key Features

• High Blocking Voltage: With a maximum operating voltage of 600V, the BTA26-600BW is ideal for handling high-voltage applications safely and effectively.
• High Current Rating: This triac can handle a current of up to 25A, making it suitable for controlling large electrical loads.
• High Surge Current: It can withstand surge currents up to 250A, ensuring reliability and robustness against short-term overloads.
• Insulated Package: The device comes in an insulated package which provides enhanced safety by ensuring that the heat sink is electrically isolated from the switching circuit.
• Gate Trigger Current: A low gate trigger current (IGT) makes the BTA26-600BW easy to drive with a wide range of gate drive circuits.
• Snubberless Technology: The triac incorporates ST's Snubberless technology, which enables high commutation performances without the need for additional snubber circuits.

Applications

The versatility of the BTA26-600BW allows it to be used in a wide array of applications such as:

• Motor control for industrial machines
• AC solid-state switches
• Lighting control systems
• Temperature regulation and HVAC systems
• Energy management applications

Product Summary

The BTA26-600BW from STMicroelectronics is a reliable and versatile triac that offers high performance in controlling AC power. Its high voltage and current ratings, combined with the Snubberless technology and insulated package, make it an excellent choice for designers looking for a robust solution for controlling high power loads in a variety of applications.
