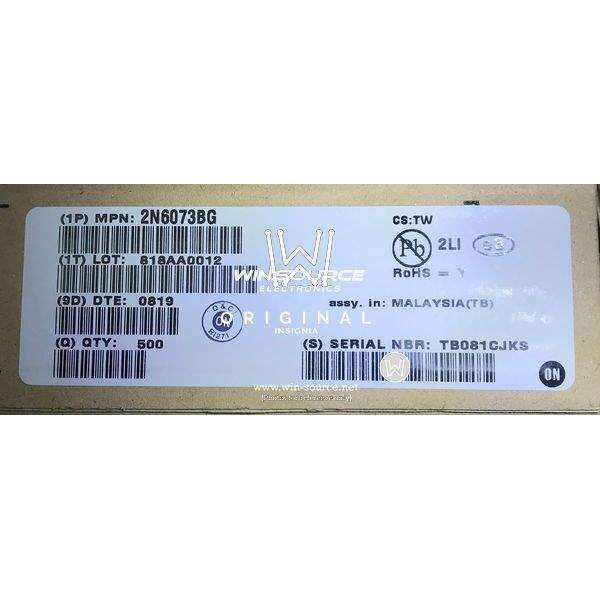

2N6073BG Littelfuse Inc. 2N6073BG Real Image 2N6073BG label picture
Same model may have multiple batches, images only for reference.
2N6073BG Littelfuse Inc. 2N6073BG Real Image 2N6073BG label picture
2N6073BG Littelfuse Inc. 2N6073BG Real Image 2N6073BG label picture
Same model may have multiple batches, images only for reference.

2N6073BG

Part No 2N6073BG
Manufacturer Littelfuse Inc.
Catalog Triacs
Description TRIAC 400V 30A 3-Pin(3+Tab) TO-225 / Sensitive Gate Triacs Silicon Bidirectional Thyristors | TRIAC SENS GATE 400V 4A TO225AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Littelfuse Inc.
Packaging Bulk
Triac Type Logic - Sensitive Gate
Voltage - Off State 400V
Current - On State (It (RMS)) (Maximum) 4A
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 30A at 60Hz
Current - Gate Trigger (Igt) (Maximum) 3mA
Current - Hold (Ih) (Maximum) 15mA
Configuration Single
Temperature Range - Operating -40°C ~ 110°C
Mounting Style Through Hole
Manufacturer Package TO-225AA, TO-126-3
Supplier Device Package TO-225AA
Family Part Number 2N6073B
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1124054-2N6073BG
Manufacturer Homepage www.onsemi.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 2N6073B
Introduction Date March 28, 2008
ECCN EAR99
Country of Origin China, Malaysia
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 2N6073BG CAD Model

Description

The Littelfuse Inc. 2N6073BG is a single configuration Logic-Sensitive Gate triac designed for use in Discrete Semiconductor Products.

  • Voltage-Off State: 400V
  • Current Non-Rep. Surge: 30A @ 60Hz (Itsm)
  • Maximum Voltage Gate Trigger (Vgt): 2.5V
  • Maximum Current Gate Trigger (Igt): 3mA
  • Maximum Current Hold (Ih): 15mA
  • Maximum On-State Current (It (RMS)): 4A
  • Operating Temperature Range: -40°C to 110°C
  • Packaging: TO-225AA, TO-126-3 packaging
  • Supply and Demand: balanced, and it is a common-used part
