The BTA40-700B is a high-performance triac from STMicroelectronics, designed to manage AC loads in a variety of applications. This powerful semiconductor device is capable of switching on and off high-voltage AC power lines, making it an ideal choice for controlling large electrical loads in industrial, commercial, and domestic environments.

Key Features

• High Blocking Voltage: With a maximum repetitive peak off-state voltage (VDRM/VRRM) of 700V, the BTA40-700B can handle high power applications with ease.
• High Current Rating: This triac is capable of conducting up to 40A (RMS), making it suitable for handling heavy loads.
• Standard Gate Trigger Current: A typical gate trigger current (Igt) of 50mA ensures compatibility with a wide range of control circuits.
• Snubberless Operation: The BTA40-700B can operate without a snubber circuit in most cases, simplifying design and reducing component count.
• High Immunity to Voltage Transients: The device is designed to withstand voltage spikes, enhancing reliability in harsh electrical environments.

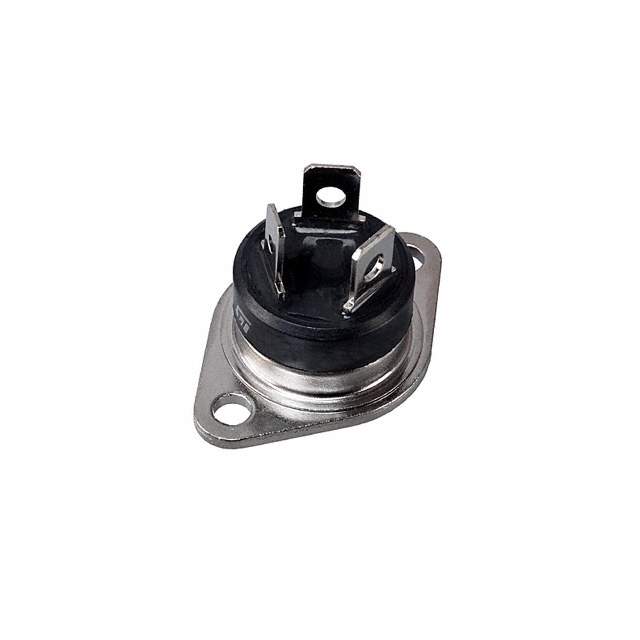

• Package Variants: Available in RD91 insulated package, it offers flexibility for various mounting configurations.

Applications

The BTA40-700B is versatile and can be used in an array of applications, including:

• Motor control circuits
• Lighting systems, including dimmers
• Heating systems and temperature modulation
• AC power switching
• Static relays
• Industrial automation systems

Quality and Reliability

STMicroelectronics is known for its commitment to quality, and the BTA40-700B is no exception. It is manufactured to meet high standards of performance and reliability, ensuring long service life and consistent operation across a wide range of environmental conditions.

Environmental Compliance

The BTA40-700B complies with various environmental standards, including RoHS and REACH, reflecting STMicroelectronics' dedication to environmental sustainability and the production of eco-friendly products.
