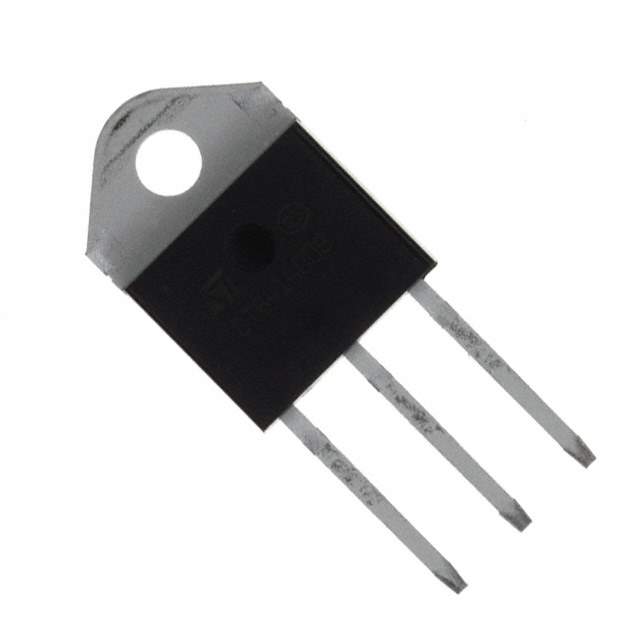

Products specifications

Manufacturer STMicroelectronics
Packaging Tube
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Maximum) 1.5V
Current - Gate Trigger (Igt) (Maximum) 50mA
Voltage - On State (Vtm) (Maximum) 2.1V
Current - On State (It (AV)) (Maximum) 19A
Current - On State (It (RMS)) (Maximum) 30A
Current - Hold (Ih) (Maximum) 75mA
Current - Off State (Maximum) 20μA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 420A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Style Through Hole
Manufacturer Package TOP-3
Supplier Device Package TOP3
Part Number Series BTW68
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807685-BTW68-600RG
Ultra Librarian 3D Model Ultra Librarian BTW68-600RG CAD Model

Description

The BTW68-600RG is a robust and high-performance thyristor SCR (Silicon-Controlled Rectifier) manufactured by STMicroelectronics, a global leader in semiconductor solutions. This SCR is designed to handle high current and voltage, making it an ideal choice for a wide range of power control and switching applications.

Key Features

  • High Surge Capability: The BTW68-600RG is capable of withstanding surge currents, ensuring reliable performance under harsh conditions.
  • Voltage Rating: With a repetitive peak off-state voltage (VDRM) of 600V, this SCR can be employed in circuits with high operating voltages.
  • Current Rating: It has an average on-state current (IT(AV)) of 50A, making it suitable for high-power applications.
  • Gate Trigger Current: The device requires a low gate trigger current (IGT), which makes it easy to trigger and enhances its compatibility with control circuits.
  • Thermal Resistance: The BTW68-600RG has a low thermal resistance, which contributes to its excellent thermal stability and longevity.
  • Package: Encased in a rugged TO-3P package, it ensures good heat dissipation and mechanical protection.

Applications

The BTW68-600RG is suited for various applications that require efficient power control, such as:

  • Motor control circuits
  • Industrial power tools
  • Lighting and heating control systems
  • Overvoltage crowbar protection
  • Capacitive discharge ignitions
  • Power supply units and inverters

Quality and Reliability

STMicroelectronics is committed to delivering high-quality products. The BTW68-600RG is manufactured with stringent quality control measures and is designed to meet the requirements of the most demanding applications. Its robust design ensures long-term reliability, making it a preferred choice for designers and engineers looking for a dependable SCR solution.
