Features 706V Clamp 5.7A (8/20µs) Ipp Tvs Diode Through Hole DO-15 (DO-204AC)
Manufacturer STMicroelectronics
Series BZW06, TRANSIL™
Package Tape & Box (TB)
Part Status Obsolete
Mounting Through Hole
Package DO-204AC, DO-15, Axial
Case / Package DO-15 (DO-204AC)
Family Name BZW06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913962-BZW06-342B
Ultra Librarian 3D Model Ultra Librarian BZW06-342B CAD Model

Description

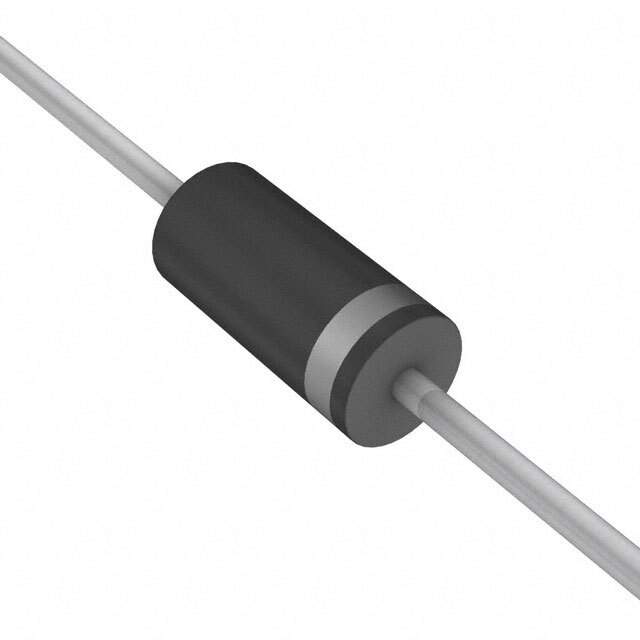

STMicroelectronics BZW06-342B Transient Voltage Suppressor

The BZW06-342B is a robust Transient Voltage Suppressor (TVS) diode designed by STMicroelectronics, a leader in semiconductor solutions. This device is specifically engineered to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events. It is a preferred choice for safeguarding components in a variety of applications, including telecommunications systems, industrial equipment, and consumer electronics.

Featuring a standoff voltage of 342V, the BZW06-342B is capable of clamping and dissipating high-energy transients efficiently, thereby preventing damage to the protected components. The diode can handle a peak pulse power dissipation of 600W (10/1000 μs waveform), which ensures that devices connected to it remain secure during sudden overvoltage conditions. Its fast response time is crucial for immediate protection once a transient voltage spike is detected.

Constructed with a glass passivated chip junction in a DO-15 package, the BZW06-342B offers reliable performance and a long operational lifespan. The passivation layer ensures stability and resistance to environmental factors, making it a durable choice for challenging conditions. The axial lead package allows for easy integration into a wide range of circuit designs, providing flexibility for designers and engineers.

One of the key features of the BZW06-342B is its bidirectional operation, which allows it to protect circuits from transients that may occur in either direction. This makes it an ideal solution for AC applications or situations where the polarity of the transient is unpredictable. Additionally, the device meets the IEC 61000-4-2 and IEC 61000-4-5 standards, ensuring compliance with international electromagnetic compatibility (EMC) requirements.

STMicroelectronics' commitment to quality is evident in the BZW06-342B, which is recognized for its reliability and performance. The TVS diode is RoHS compliant, demonstrating STMicroelectronics' dedication to environmental responsibility and the production of components that meet current regulatory standards for hazardous substances.

In summary, the BZW06-342B from STMicroelectronics is a high-performance TVS diode that provides excellent transient voltage suppression capabilities, ensuring the protection of sensitive electronic circuits across a broad range of applications.
