Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6V
Power Dissipation - Pd 120W
Power Line Protection Yes
Applications General Purpose
Capacitance @ Frequency 2pF @ 1MHz
Mounting SMD (SMT)
Case / Package SOT-666
Win Source Part Number 014901-DSILC6-4P6
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSILC6-4P6 CAD Model

Description

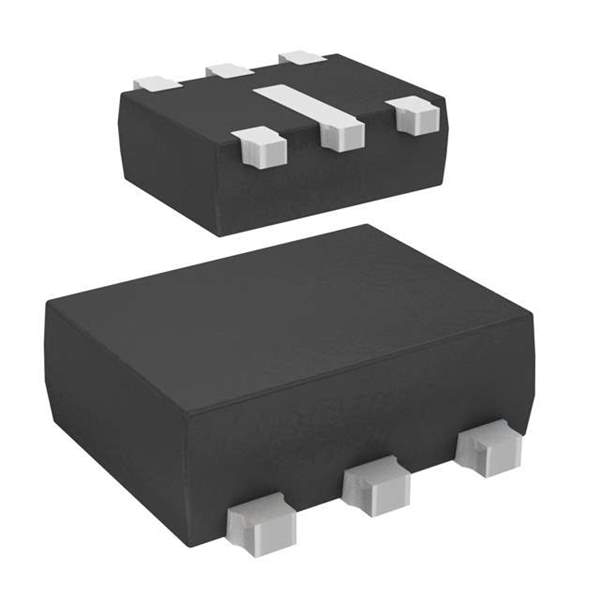

Product Overview: DSILC6-4P6 - STMicroelectronics

The DSILC6-4P6 from STMicroelectronics is a state-of-the-art transient voltage suppression (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. This high-performance device is specifically engineered to safeguard four data or signal lines from the destructive effects of electrostatic discharge (ESD), electrical fast transients (EFT), and surges.

Key Features

  • Low Clamping Voltage: The DSILC6-4P6 offers an exceptionally low clamping voltage, which is crucial for the protection of modern, sensitive electronic circuits.
  • High Surge Capability: With its robust surge protection features, it can withstand significant surge currents, ensuring the longevity and reliability of your electronic components.
  • Low Capacitance: The device is designed with low line capacitance, minimizing signal attenuation and preserving the integrity of high-speed data lines.
  • ISO 7637-2 and IEC 61000-4-2 Compliant: It meets the stringent requirements of automotive and industrial standards for ESD and EFT immunity, making it an ideal choice for harsh environments.

Applications

The DSILC6-4P6 is versatile and can be used in a wide range of applications. It is particularly well-suited for:

  • USB 2.0 and 3.0 Power and Data Line Protection
  • HDMI and DisplayPort Interfaces
  • 10/100 and Gigabit Ethernet Links
  • Mobile and Portable Devices
  • Industrial Control Systems

Reliability and Quality

STMicroelectronics is renowned for its commitment to quality and reliability, and the DSILC6-4P6 is no exception. Manufactured with the highest standards, this TVS diode ensures the protection of your electronics against transient voltage spikes, contributing to the overall system robustness and longevity.

Conclusion

Whether you are designing consumer electronics, automotive systems, or industrial controls, the DSILC6-4P6 offers a compact, reliable, and efficient solution for protecting sensitive circuits against voltage transients. Its performance and compliance with industry standards make it a top choice for engineers and designers looking for robust protection in a small package.
