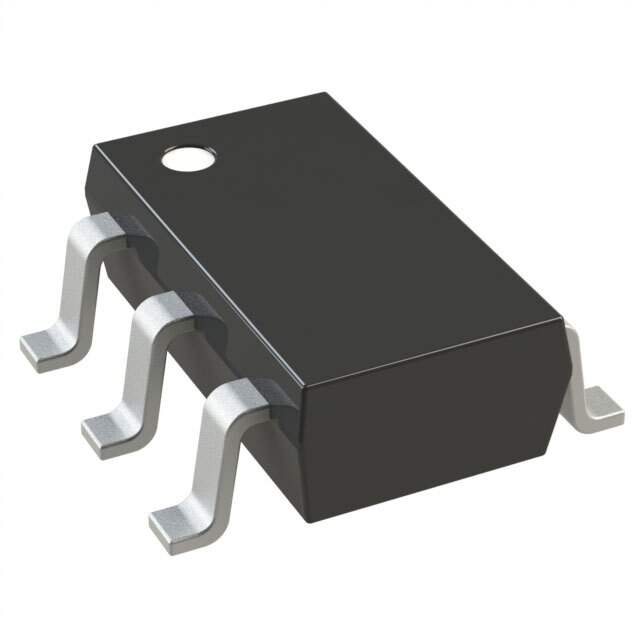

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Voltage - Breakover 25V
Voltage - Off State 10.5V
Current - Peak Pulse (8/20μs) 30A
Peak Pulse Current(Ippm) 18A
Current - Hold (Ih) 100mA
Number of Elements 1
Capacitance 17pF
Mounting SMD (SMT)
Dimension SC-74A, SOT-753
Win Source Part Number 129182-DSL01-010SC5
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSL01-010SC5 CAD Model

Description

The DSL01-010SC5 is an advanced, high-performance transient voltage suppressor (TVS) diode designed by STMicroelectronics, a leader in semiconductor solutions. This product is specifically engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events.

Key Features

  • Low Clamping Voltage: The DSL01-010SC5 offers a low clamping voltage, which ensures that any transient voltage spikes are suppressed effectively without causing damage to the protected device.
  • High Surge Capability: With its robust design, this diode can withstand high surge currents, making it ideal for use in environments where high energy transients are common.
  • Fast Response Time: The device reacts quickly to transient events, providing prompt protection and minimizing the risk of damage to the circuit.
  • Low Leakage Current: It features a very low leakage current in standby mode, which contributes to energy efficiency and long-term reliability of the application.
  • Surface-Mount Package: The DSL01-010SC5 comes in a small surface-mount SOD-323 package, which is suitable for high-density circuit board designs and is easy to integrate into various electronic systems.
  • Compliance: This product complies with the IEC 61000-4-2 and IEC 61000-4-5 standards, ensuring compatibility with regulatory requirements for electromagnetic compatibility (EMC).

Applications

The DSL01-010SC5 is versatile and can be used in a wide range of applications, including:

  • Computers and computer peripherals
  • Communication systems
  • Consumer electronics
  • Industrial electronics
  • Power supply protection

Conclusion

With its combination of low clamping voltage, high surge capability, and fast response time, the DSL01-010SC5 from STMicroelectronics is an excellent choice for designers looking to enhance the protection of their electronic systems against voltage transients. Its compliance with industry standards and suitability for a broad range of applications make it a reliable and practical solution for transient voltage suppression needs.
