Products specifications

Categories Circuit Protection
Estimated Pruduction Lead Time 19 Weeks
Features - Clamp - Ipp Tvs Diode Surface Mount 5-FlipChip (0.94x0.94)
Manufacturer STMicroelectronics
Series ESDA, TRANSIL™
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 5-WFBGA, FCBGA
Case / Package 5-FlipChip (0.94x0.94)
Family Name ESDA14V2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 497-14160-1, 497-14160-2, 497-14160-6, ESDA14V2-4BF3-ND
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871190-ESDA14V2-4BF3
Ultra Librarian 3D Model Ultra Librarian ESDA14V2-4BF3 CAD Model

Description

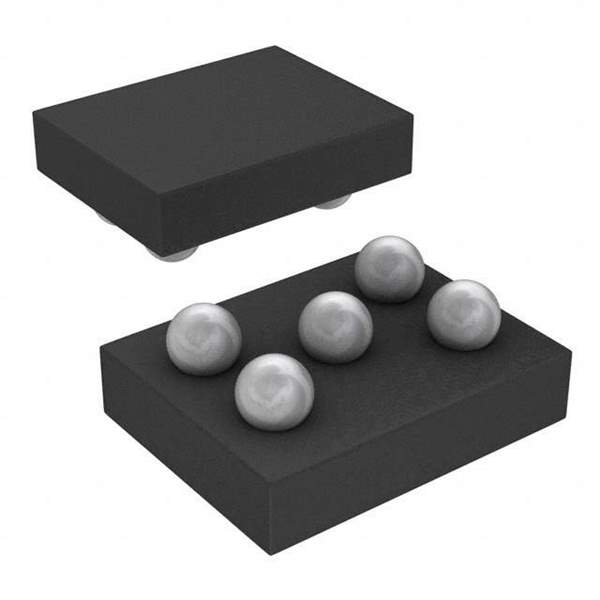

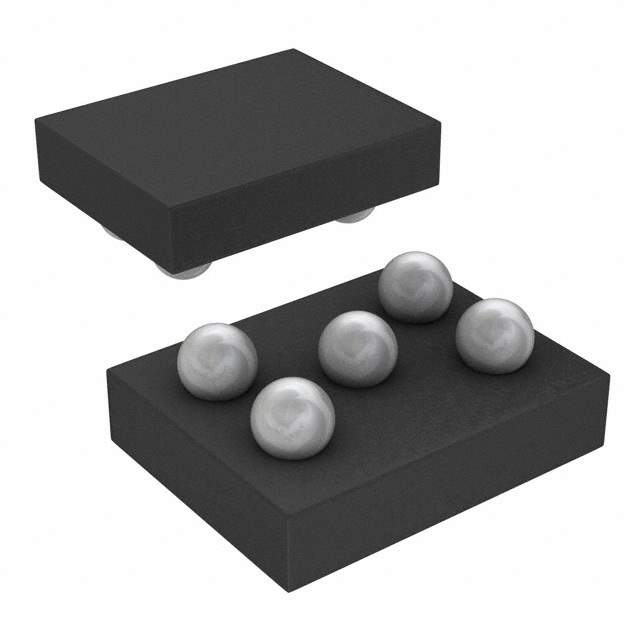

STMicroelectronics ESDA14V2-4BF3 ESD Protection Device

The ESDA14V2-4BF3 from STMicroelectronics is a robust ESD protection device, designed to shield sensitive electronic components from electrostatic discharge (ESD) threats. This component is particularly well-suited for high-speed data line and signal protection in a wide array of applications, including mobile phones, computers, and other portable electronics.

Featuring a bidirectional array of suppression diodes, the ESDA14V2-4BF3 can safely absorb and dissipate ESD strikes of up to 30 kV, as per the IEC 61000-4-2 standard. This high level of protection is achieved without compromising the integrity of the high-speed signals it protects, thanks to its low line capacitance.

The device is constructed with a flow-through design that simplifies PCB layout by allowing the signal lines to pass directly through the device, thereby minimizing signal distortion and impedance mismatches. The ESDA14V2-4BF3 comes in a compact SOT-23-6L package, which is not only space-efficient but also offers a low-profile solution for today's slim electronic designs.

Key features of the ESDA14V2-4BF3 include:

  • Low clamping voltage, ensuring that sensitive circuits are well-protected from voltage spikes.
  • Very low leakage current, which helps to preserve battery life in portable devices.
  • High surge capability, providing robust protection against transient voltage spikes.
  • Fast response time, to quickly react to ESD events and minimize potential damage.

STMicroelectronics has engineered the ESDA14V2-4BF3 to be compatible with the requirements of the highest ESD protection standards, making it an excellent choice for designers looking to enhance the durability and reliability of their products. With its combination of high-performance ESD protection, compact form factor, and ease of integration, the ESDA14V2-4BF3 is an ideal solution for safeguarding high-speed data interfaces against the threats posed by electrostatic discharge.

By integrating the ESDA14V2-4BF3 into their designs, manufacturers can provide their customers with the assurance that their electronics are not only powerful and feature-rich but also resilient and long-lasting in the face of common ESD-related challenges.
