Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6.1V
Power Dissipation - Pd 30W
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)

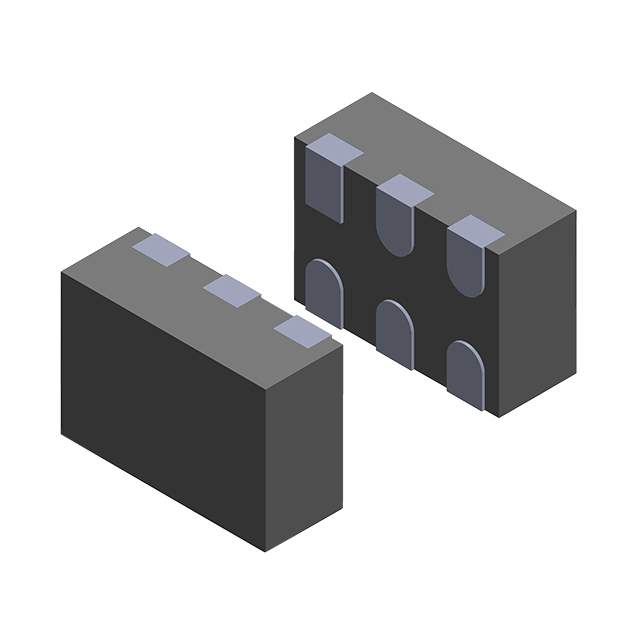

Case / Package 6-μQFN (1.45x1.0)
Win Source Part Number 066624-ESDALC6V1M6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ESDALC6V1M6 CAD Model

Description

The ESDALC6V1M6 from STMicroelectronics is a state-of-the-art ESD protection device designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. This compact, high-performance device is a crucial component for modern electronics, offering robust protection in a small footprint, making it ideal for space-constrained applications.

Key Features

  • Low Clamping Voltage: The ESDALC6V1M6 offers a very low clamping voltage, which ensures that sensitive circuits are well protected from high voltage transients.
  • Low Capacitance: With a low line capacitance, this device preserves signal integrity and minimizes impact on high-speed data lines, making it suitable for applications such as USB 2.0, HDMI, and Ethernet.
  • High ESD Protection: It is capable of withstanding ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard.
  • Multi-Line Protection: This device can protect up to 5 data lines, providing a cost-effective solution for comprehensive ESD protection.
  • Fast Response Time: The ESDALC6V1M6 reacts quickly to transient events, ensuring that the protected components are shielded from damage without delay.
  • SOT-23-6L Package: Its small SOT-23-6L package allows for easy integration into PCB designs without requiring significant board space.
  • RoHS Compliant: Compliance with RoHS directives makes this device suitable for use in environmentally sensitive applications.

Applications

The ESDALC6V1M6 is versatile and can be used in a variety of applications, including:

  • Mobile Devices
  • Computers and Peripherals
  • Networking Equipment
  • Consumer Electronics
  • Portable Electronics

Conclusion

As electronic devices continue to evolve, becoming faster and more integrated, the need for effective ESD protection becomes increasingly critical. The ESDALC6V1M6 from STMicroelectronics addresses this need with its advanced features, making it an essential component for designers looking to enhance the durability and reliability of their electronic products.
