Products specifications Report Issue?

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 15V, 24V
Minimum Breakdown Voltage 17.1V, 25.4V
Max Clamping Voltage 35V, 50V
Peak Pulse Current(Ippm) 5A, 3A (8/20μs)
Power Dissipation - Pd 160W
Applications Automotive
Capacitance @ Frequency 16pF @ 1MHz
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)

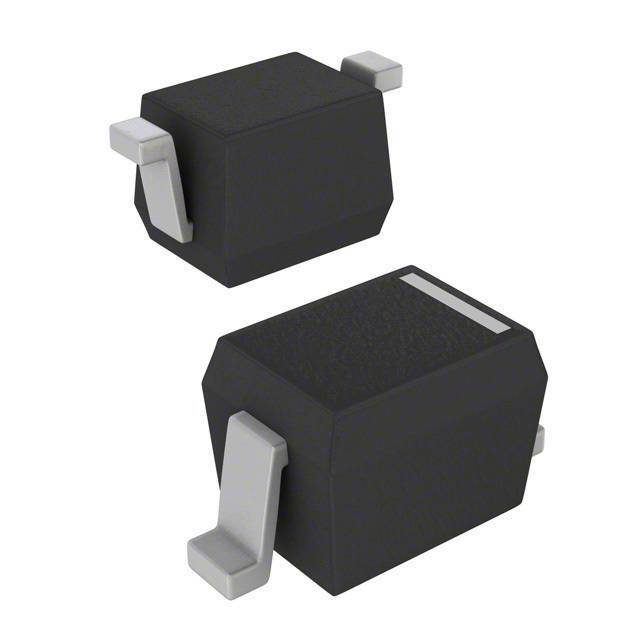

Case / Package SOD-323
Win Source Part Number 015736-ESDLIN1524BJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ESDLIN1524BJ CAD Model

Description

The ESDLIN1524BJ is a cutting-edge transient voltage suppression (TVS) diode designed by STMicroelectronics, a global semiconductor leader. This device is specifically engineered to protect sensitive electronic equipment from voltage transients induced by electrostatic discharge (ESD) and other transient voltage events. It is an ideal solution for safeguarding high-speed data lines and other vulnerable circuits against the damaging effects of ESD.

Key Features

  • Low Clamping Voltage: The ESDLIN1524BJ offers a low clamping voltage, which is crucial for the protection of modern electronics where higher voltages can be detrimental to sensitive components.
  • High ESD Protection: This device is capable of withstanding ESD discharges up to the IEC 61000-4-2 standard, ensuring robust protection for your electronic devices.
  • Low Leakage Current: With its minimal leakage current, the ESDLIN1524BJ ensures that there is negligible effect on the normal operation of the protected circuit.
  • Fast Response Time: The TVS diode provides an immediate response to transient voltages, thus offering instant protection against ESD events.
  • Small Package Size: The compact SOD-882L package makes it suitable for space-constrained applications, without compromising on performance.

Applications

The ESDLIN1524BJ is versatile and can be used in a variety of applications where ESD protection is critical. Common applications include:

  • USB interfaces
  • HDMI ports
  • DisplayPort interfaces
  • High-speed data lines
  • Smartphone and tablet I/O ports
  • Portable electronic devices

Reliability and Quality

STMicroelectronics is renowned for its commitment to quality and reliability, and the ESDLIN1524BJ is no exception. Each device is rigorously tested to meet stringent industry standards, ensuring that it delivers consistent performance and reliability in the field. By choosing the ESDLIN1524BJ for your ESD protection needs, you are selecting a product that benefits from STMicroelectronics' legacy of excellence in semiconductor design and manufacturing.
