Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 85mA
Outputs and Type 6, Non-Isolated
Voltage - Output 36V
Features Dimmable, Extra 5V Output
Voltage - Input 4.5V ~ 36V
Supplied Contents Board(s)
Utilized IC / Part LED7707
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.32.0071
Win Source Part Number 1341638-EVALED7707
Ultra Librarian 3D Model Ultra Librarian EVALED7707 CAD Model

Description

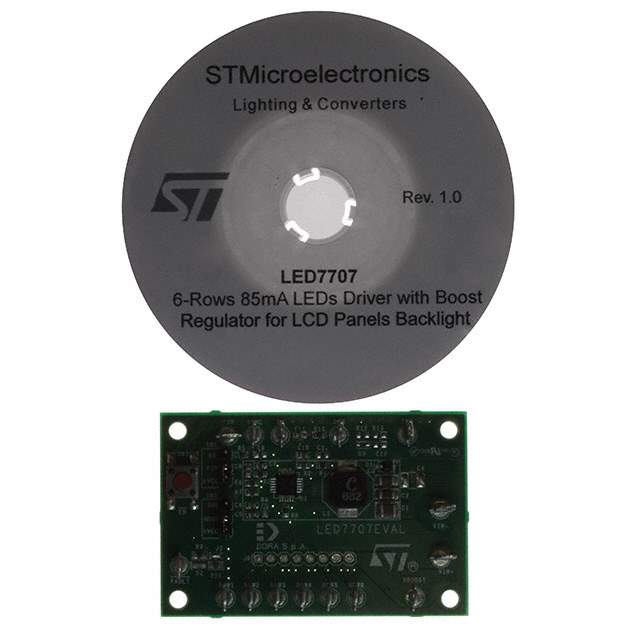

The EVALED7707 from STMicroelectronics is a state-of-the-art evaluation board designed for engineers and developers who are looking to explore the capabilities of the LED7707 LED driver IC. This compact and versatile evaluation platform is perfect for testing and prototyping LED lighting solutions, particularly those used in LCD backlighting applications and general-purpose LED lighting.

Key Features

  • Integrated LED7707 Driver: The evaluation board comes equipped with the LED7707, a highly efficient, octal-channel, constant-current LED driver. This IC is capable of providing a maximum output current of 85 mA per channel, ensuring bright and consistent illumination for your LED arrays.
  • Flexible Power Supply: The EVALED7707 supports a wide input voltage range from 5.5 V to 48 V, making it suitable for a variety of power supply scenarios and ensuring compatibility with different LED configurations.
  • Dimming Control: With built-in PWM dimming control, the EVALED7707 allows for precise brightness adjustment, enabling the creation of dynamic lighting effects and power saving modes.
  • Thermal Protection: The evaluation board includes thermal shutdown protection to safeguard the LED driver against overheating, thus prolonging the lifespan of the LEDs and maintaining system reliability.
  • Easy Connectivity: The board features convenient connectors for easy integration with external control circuits and power supplies. This simplifies the process of setting up and testing various configurations.

Applications

The EVALED7707 is ideal for a wide range of applications that require high-efficiency LED driving, such as:

  • LCD TV backlighting
  • Monitor backlighting
  • General-purpose LED lighting
  • Architectural lighting
  • Signage and display backlighting

With its robust feature set and ease of use, the STMicroelectronics EVALED7707 evaluation board is an excellent tool for designers and engineers looking to develop innovative LED solutions with the LED7707 driver IC.
