Products specifications

Category Development Boards, Kits, Programmers - Evaluation Boards - LED Drivers
Mfr STMicroelectronics
Package Box
Product Status Obsolete
Current - Output / Channel 3A
Outputs and Type 1, Non-Isolated
Features Dimmable
Voltage - Input 3V ~ 18V
Supplied Contents Board(s)
Utilized IC / Part LED2000
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1341615-EVALED2000P
Ultra Librarian 3D Model Ultra Librarian EVALED2000P CAD Model

Description

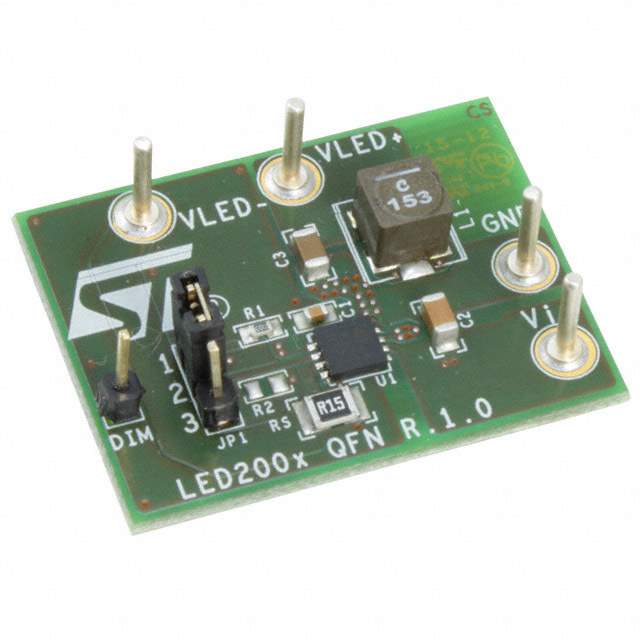

STMicroelectronics EVALED2000P Evaluation Board

The EVALED2000P is a state-of-the-art evaluation board designed by STMicroelectronics, tailored specifically for the testing and assessment of the LED2000P driver. This evaluation board offers engineers and developers an efficient platform for the rapid prototyping and development of LED lighting solutions, which are energy-efficient and high-performing.

The board is equipped with a range of features that enable it to deliver exceptional performance. It supports a wide input voltage range, making it suitable for a variety of power supply conditions. The EVALED2000P is also designed with flexibility in mind, providing adjustable output current settings through external resistors, which allows for precise control over the LED current to match specific application requirements.

With its onboard PWM dimming interface, the EVALED2000P offers smooth and flicker-free dimming capabilities, ensuring that it can cater to applications that require variable light intensity with minimal visual discomfort. The dimming feature is also a key aspect of energy conservation, allowing for reduced power consumption when full brightness is not necessary.

For thermal management, the evaluation board incorporates features that protect against over-temperature conditions. This ensures the longevity and reliability of both the board and the LED driver under test, even under strenuous operating conditions. The EVALED2000P's design includes a heatsink to dissipate heat efficiently, safeguarding the components from thermal stress.

Connectivity on the EVALED2000P is designed for ease of use, with clearly labeled connectors and test points that facilitate quick setup and measurements. This user-friendly approach accelerates the development process, allowing designers to focus on innovation rather than setup complexities.

In summary, the EVALED2000P from STMicroelectronics is an invaluable tool for engineers looking to develop advanced LED lighting systems. Its combination of versatility, ease of use, and robust protection features make it an ideal choice for evaluating the LED2000P driver and pushing the boundaries of LED lighting technology.
