The L6230PDTR from STMicroelectronics is a state-of-the-art motor driver designed to efficiently drive brushless DC motors, specifically catering to the needs of modern, compact electronic applications. This advanced motor driver integrates a DMOS fully bridge for driving motors with currents up to 2.8 A.

Key Features

• Operating Voltage: The device operates at a supply voltage ranging from 8 V to 52 V, making it versatile for a wide range of applications.
• Output Current: It can deliver up to 2.8 A of output current (peak) per channel, ensuring robust performance for demanding applications.

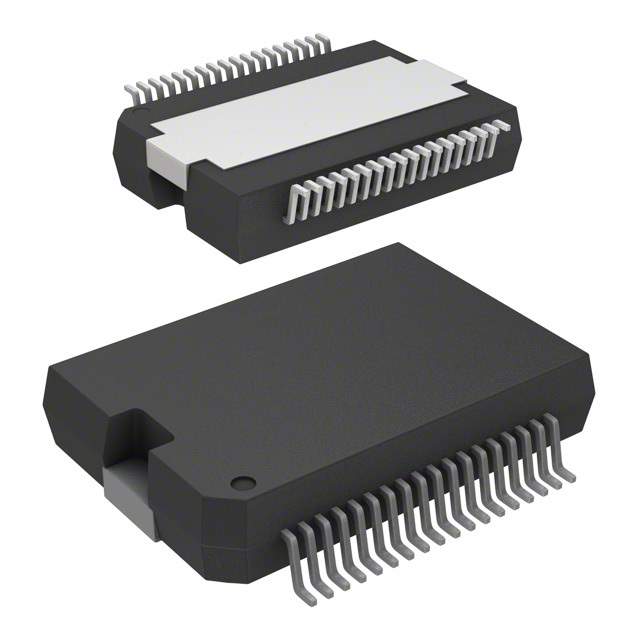

• PowerSO Package: Packaged in a PowerSO36, the L6230PDTR offers a compact footprint while maintaining excellent power dissipation capabilities.
• Protection Features: With built-in thermal shutdown, under-voltage lockout, non-dissipative overcurrent protection, and cross-conduction protection, this driver ensures safe and reliable operation.
• Control Flexibility: It allows for various control modes including PWM, direction input, and speed control, providing designers with flexibility in motor control schemes.

Applications

The L6230PDTR is ideal for a wide array of applications due to its robust feature set and high-performance characteristics. It is particularly well-suited for:

• 3D Printers
• Small robotics
• CNC machines
• Office automation machines
• Medical equipment
• Textile machinery

Advantages

This motor driver is a perfect solution for designers looking for a high-efficiency, high-reliability component that minimizes the need for external circuitry. The integration of multiple protection features ensures long-term stability and performance, while the ability to operate over a wide voltage range provides flexibility in system design. The L6230PDTR's advanced features and compact size make it an excellent choice for driving brushless DC motors in space-constrained applications.
