Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 51 Weeks
Features Power Switch/Driver - N-Channel - PowerSSO-36 EPD
Manufacturer STMicroelectronics
Series Automotive, AEC-Q100
Package Reel - TR
Supply Voltage 4.75V ~ 5.25V
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount

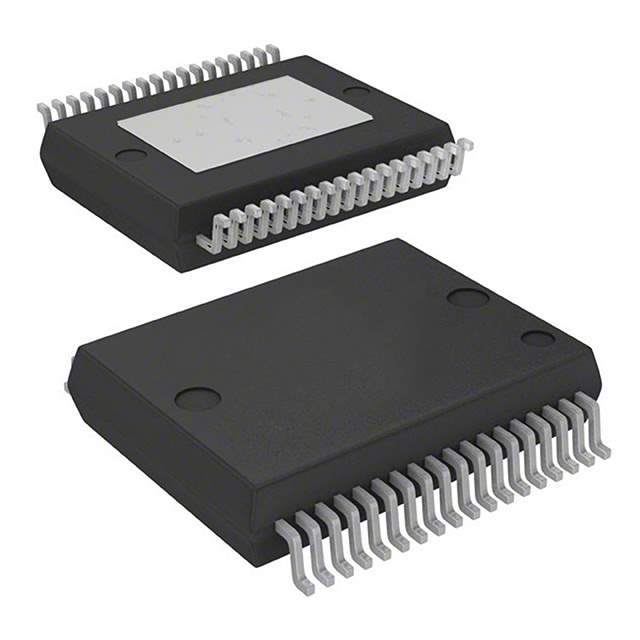

Package 36-PowerFSOP (0.295", 7.50mm Width)
Case / Package PowerSSO-36 EPD
Family Name L9301
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 497-17122-6, 497-17122-2, 497-17122-1
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 922651-L9301-TR
Ultra Librarian 3D Model Ultra Librarian L9301-TR CAD Model

Description

The L9301-TR from STMicroelectronics is a highly integrated, state-of-the-art device designed to cater to the demanding requirements of automotive applications. This smart power device is part of ST's extensive portfolio of automotive ICs, which are renowned for their reliability and performance in harsh environments.

Key Features

  • Integrated Power Stages: The L9301-TR includes integrated high-side and low-side power stages, which are capable of driving a variety of loads with high efficiency and precision.
  • Diagnostic Functions: With advanced diagnostic features, the device can detect and report various fault conditions such as over-temperature, open-load, short-circuit, and under-voltage, ensuring safe and reliable operation.
  • Protection Mechanisms: It incorporates robust protection features including over-current protection, thermal shutdown, and load-dump protection, safeguarding the device and the system it controls against a wide range of potential hazards.

Applications

The L9301-TR is ideally suited for a variety of automotive applications, including but not limited to:

  • Engine Control Units (ECUs)
  • Transmission Control Modules
  • Body Control Modules
  • Automotive Lighting Systems

Technical Specifications

The device operates over a broad voltage range and is designed to work reliably in the automotive voltage environment. It is also compatible with 5V and 3.3V logic levels, allowing for easy integration with microcontrollers and other digital systems.

Package and Quality

The L9301-TR comes in a robust package that is designed to withstand the rigors of automotive applications. It is available in a tape and reel (TR) format, which is suitable for automated assembly processes, ensuring high production efficiency. Furthermore, the product meets the stringent automotive quality standards, including AEC-Q100 qualification, and is manufactured in ISO/TS 16949 certified facilities.

With its combination of integration, diagnostic capabilities, and protection features, the STMicroelectronics L9301-TR is an excellent choice for designers looking to enhance the performance and reliability of their automotive systems.
