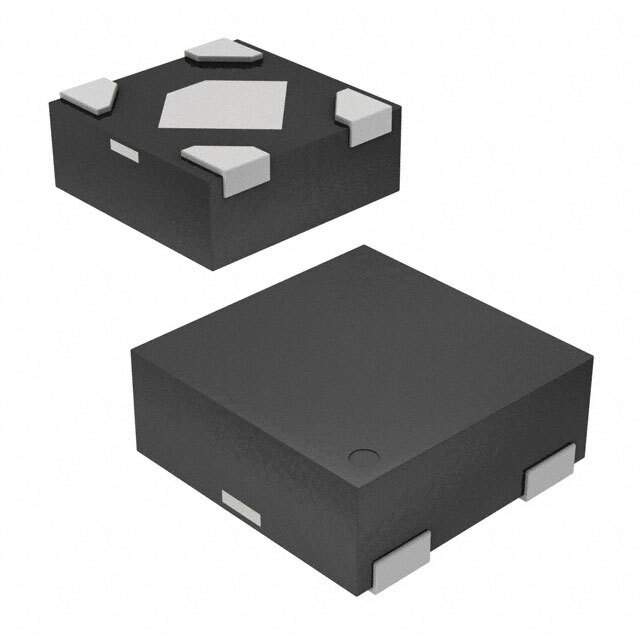

LD39020DTPU11R

Part No LD39020DTPU11R
Manufacturer STMicroelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 1.1V 200MA 4DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 27 Weeks
Features Linear Voltage Regulator IC Positive Fixed 1 Output 200mA 4-DFN (1x1)
Manufacturer STMicroelectronics
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 4-XDFN Exposed Pad
Case / Package 4-DFN (1x1)
Family Name LD39020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 497-16887-2, -497-16887-6, 497-16887-1, -497-16887-2, -497-16887-1, 497-16887-6
Quantity per package 10000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 876874-LD39020DTPU11R
Ultra Librarian 3D Model Ultra Librarian LD39020DTPU11R CAD Model

Description

The LD39020DTPU11R is a high-performance, low drop-out (LDO) voltage regulator from the renowned semiconductor manufacturer, STMicroelectronics. This device is designed to deliver a stable and precise voltage supply, ensuring optimal performance for sensitive electronic circuits. With its compact size and high efficiency, the LD39020DTPU11R is an ideal choice for space-constrained applications.

Key Features

  • Output Voltage: The regulator provides a fixed output voltage of 1.1V, suitable for low-voltage operations in modern electronic devices.
  • Low Dropout: The LD39020DTPU11R boasts a low dropout voltage, which enhances its efficiency and allows for operation closer to the input voltage level.
  • High Output Current: It is capable of delivering an output current of up to 200 mA, making it suitable for a wide range of applications.
  • Stability: The device is stable with ceramic capacitors, ensuring reliability and consistent performance over various conditions.
  • Low Quiescent Current: The LDO regulator features a low quiescent current that reduces power consumption, especially beneficial in battery-powered applications.
  • Thermal Protection: Built-in thermal shutdown protection safeguards the device from overheating, enhancing its longevity.
  • Package: The LD39020DTPU11R comes in a compact DFN6 package (1.2 x 1.3 mm), minimizing the footprint on the PCB.

Applications

This versatile LDO regulator is designed for use in a variety of applications where efficient power management is crucial. It is particularly well-suited for portable and battery-powered devices, such as smartphones, tablets, and wearables. Additionally, it can be used in healthcare devices, IoT sensors, and other embedded systems that require a stable and efficient power supply.

Conclusion

The LD39020DTPU11R from STMicroelectronics is a reliable and efficient solution for managing power in electronic circuits. Its low dropout voltage, high output current, and stability with ceramic capacitors make it a top choice for designers looking to enhance the performance of their applications while conserving space and energy.
