The LD39100PUR from STMicroelectronics is a high-performance, low-dropout linear voltage regulator designed to provide a stable power supply for various electronic applications. This regulator is capable of delivering up to 1A of continuous current with an input voltage range from 1.5V to 5.5V, making it an ideal choice for battery-powered devices, portable electronics, and low-power embedded systems.

With its ultra-low dropout voltage and low quiescent current, the LD39100PUR ensures efficient operation, reducing power consumption and prolonging battery life in portable applications. The device features excellent load and line regulation, ensuring a stable output voltage even under varying load conditions and input voltage fluctuations.

Key Features:

• Output current up to 1A
• Input voltage range: 1.5V to 5.5V
• Low dropout voltage: typically 200mV at 1A
• Stable with low ESR ceramic capacitors
• Low quiescent current
• High PSRR: 70dB at low frequencies
• Thermal shutdown and current limit protection
• Available in DFN6 (1.2 x 1.3 mm) package

The LD39100PUR also includes a wide range of protection features such as thermal shutdown and current limit protection to safeguard the device and the load from damage due to overheating or excessive current conditions. These features contribute to the reliability and longevity of the end application.

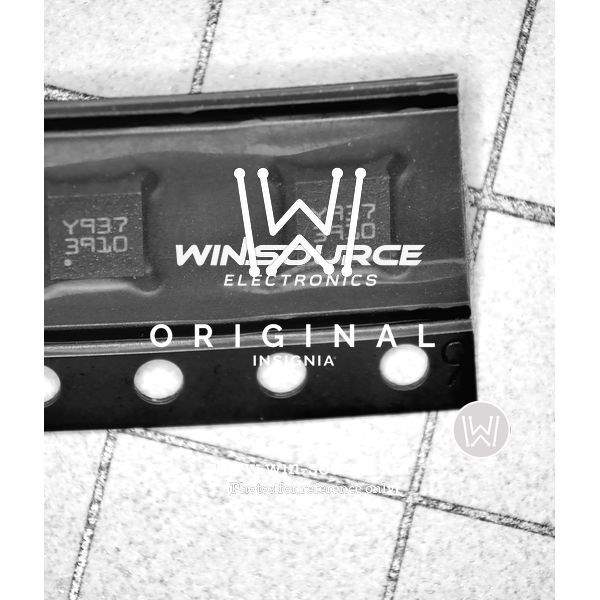

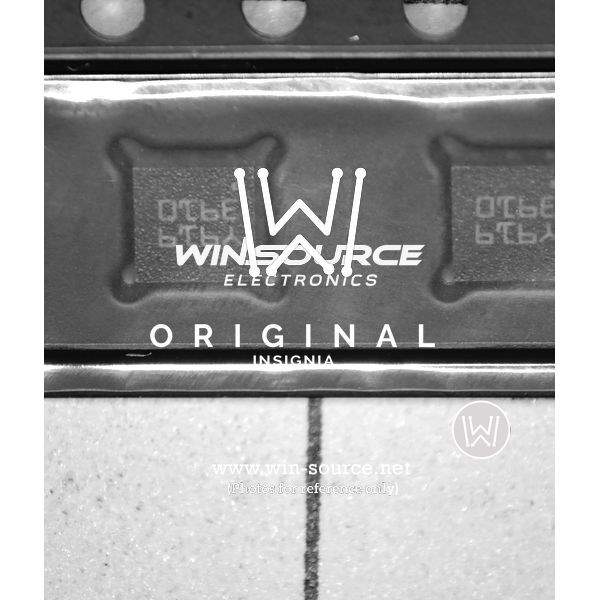

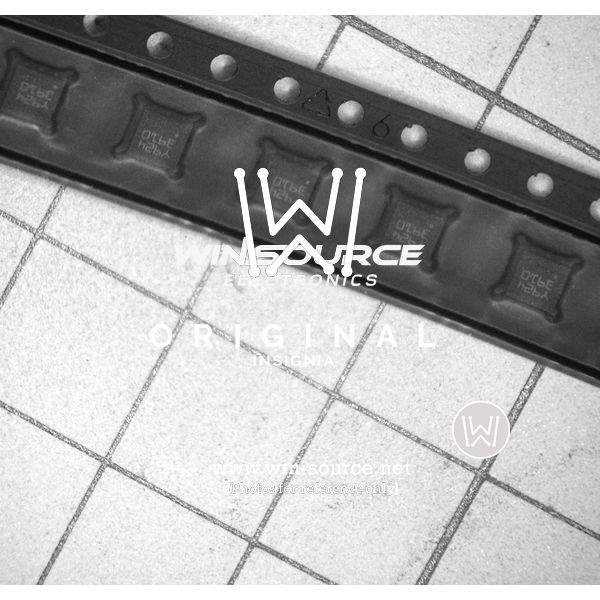

This voltage regulator is available in a compact DFN6 (1.2 x 1.3 mm) package, which is suitable for space-constrained applications. The small footprint and low profile of the package allow for high-density board designs and integration into small form factor devices.

In summary, the STMicroelectronics LD39100PUR is a versatile and reliable voltage regulator that offers high performance, excellent power efficiency, and a comprehensive set of protection features, all within a compact package. It is an excellent choice for designers looking to improve the power management and efficiency of their electronic systems.
