Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Cut Tape (CT)
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 20V
Voltage - Breakdown (Minimum) 22V
Voltage - Clamping (Maximum) at Ipp 35V
Current - Peak Pulse (10/1000μs) 331A (8/20μs)
Power - Peak Pulse 1800W (1.8kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole

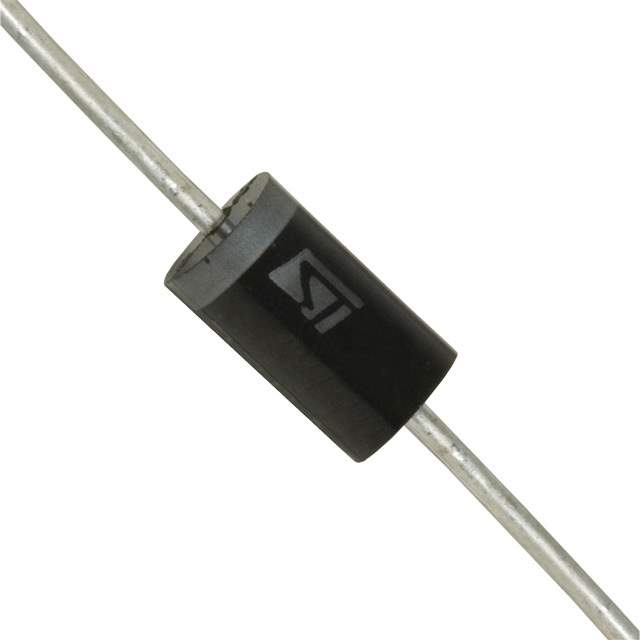

Manufacturer Package DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Family Part Number LNBTVS
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1202626-LNBTVS4-220
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LNBTVS4-220 CAD Model

Description

Product Overview: LNBTVS4-220

The LNBTVS4-220 is a robust transient voltage suppression (TVS) diode designed and manufactured by STMicroelectronics, a global semiconductor leader. This device is engineered to provide high-quality surge and electrostatic discharge (ESD) protection for sensitive electronics. With its low clamping voltage and fast response time, the LNBTVS4-220 is an ideal choice for safeguarding high-speed data lines and other vulnerable circuits from the damaging effects of transient voltage spikes.

Key Features

  • Stand-off Voltage: The device has a stand-off voltage of 220V, which means it can tolerate continuous voltage up to this level without conducting significant current, making it suitable for a wide range of applications.
  • Surge Protection: The LNBTVS4-220 is designed to handle surge currents, thus ensuring protection against transient overvoltage events such as lightning strikes, inductive load switching, and others.
  • Low Clamping Voltage: Upon detecting a voltage spike, the TVS diode clamps the overvoltage to a safe level within nanoseconds, thereby protecting the downstream circuitry from high-voltage stress.
  • High Reliability: STMicroelectronics' commitment to quality ensures that the LNBTVS4-220 offers reliable performance over its lifespan, making it a trusted component in critical applications.
  • Package: Available in a compact, surface-mount SMC package, the LNBTVS4-220 is suitable for use in space-constrained applications while also offering ease of integration into existing PCB designs.
  • Compliance: The product complies with the IEC 61000-4-2 and IEC 61000-4-5 standards, confirming its capability to withstand ESD and surge transients.

Applications

The LNBTVS4-220 is versatile and can be used across various sectors, including:

  • Telecommunications equipment
  • Consumer electronics
  • Computer systems
  • Industrial control systems
  • Networking devices
  • And other applications where transient voltage protection is critical.

With its robust protection features and STMicroelectronics' reputation for quality, the LNBTVS4-220 is an excellent choice for designers looking to enhance the durability and reliability of their electronic systems against voltage transients.
