STMicroelectronics LSM330TR Inertial Module

The LSM330TR from STMicroelectronics is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope tailored for the demands of the mobile and industrial markets. This compact inertial module is designed to provide a versatile, high-performance solution for a wide range of applications including gaming and virtual reality input devices, motion control with handheld terminals, GPS navigation systems, impact recognition and logging, and vibration monitoring and compensation.

Key Features

• 3D Accelerometer: The LSM330TR includes a high precision 3-axis accelerometer that can measure acceleration up to ±16 g. It provides high-resolution output data and features several user-selectable full scales.
• 3D Gyroscope: Alongside the accelerometer, this module incorporates a 3-axis digital gyroscope with a selectable full-scale range of ±250, ±500, ±2000 degrees per second, ensuring accurate angular rate measurement.
• Embedded Intelligence: The LSM330TR has embedded features such as programmable finite state machines for motion recognition, free-fall detection, and a wide range of other motion-related features.
• Power Efficiency: Designed with power efficiency in mind, the LSM330TR offers a normal mode and a power-down mode, allowing for reduced power consumption when high precision is not required.
• Multi-Interface Capability: The module supports I2C and SPI serial interface options, providing flexibility for system design and ensuring easy integration into various system architectures.

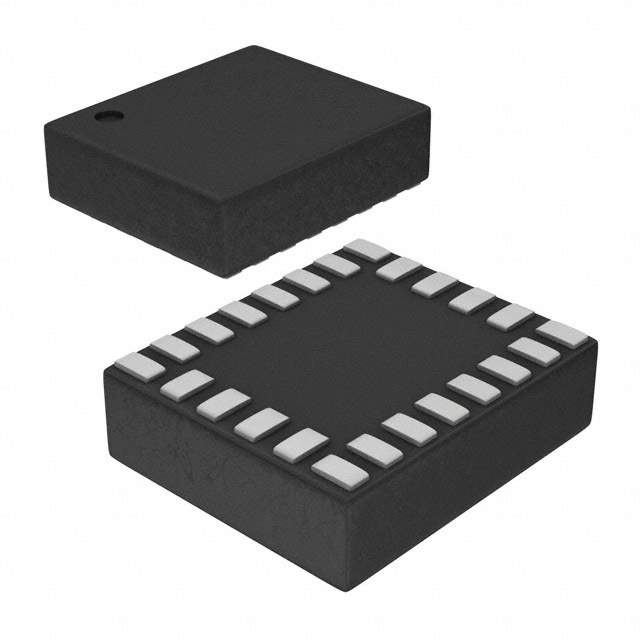

• Compact Form Factor: The LSM330TR comes in a land grid array (LGA) package that is both durable and suitable for space-constrained applications.

Applications

The LSM330TR is ideal for applications that require reliable and precise inertial data. It is particularly well-suited for:

• Smartphones and Tablets
• Personal Navigation Devices
• Industrial Automation and Robotics
• Health and Fitness Trackers
• Unmanned Aerial Vehicles (UAVs)

With its robust performance, the LSM330TR provides an optimal combination of miniaturization, reliability, and accuracy, making it a top choice for designers and engineers looking to enhance their products with advanced motion sensing capabilities.
