Products specifications

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Memory Format EPROM
Technology EPROM - UV
Memory Size 2Mb (256K x 8)
Access Time 120ns
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating 0°C to 70°C (TA)
Mounting Through Hole
Case / Package 32-CDIP Frit Seal with Window
Win Source Part Number 088089-M27C2001-12F1
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name M27C2001
Introduction Date April 01, 1999
ECCN EAR99
Country of Origin China, India, Malaysia, Morocco, Philippines, Republic of Korea, Singapore
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian M27C2001-12F1 CAD Model

Description

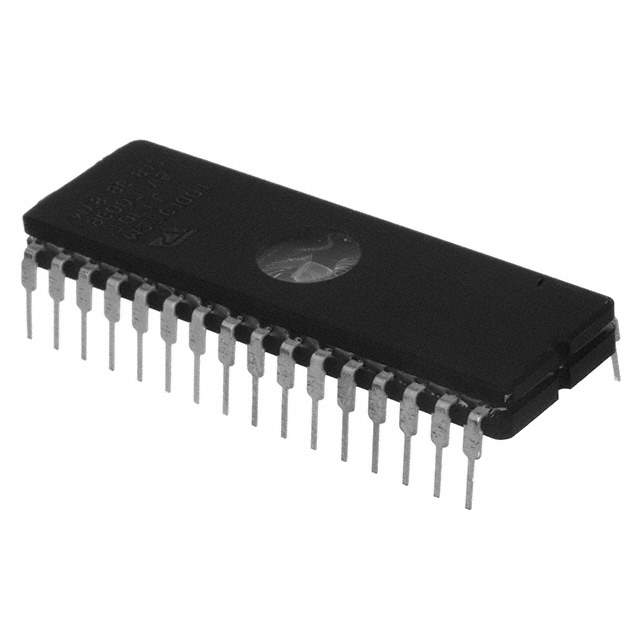

The M27C2001-12F1 is a high-speed 2 Mbit (256Kb x 8) UV erasable and programmable read-only memory (EPROM) device from STMicroelectronics. This memory chip is designed for applications where reliable and cost-effective non-volatile memory storage is essential. It is particularly well-suited for use in embedded systems, microcontroller applications, and various electronic products where program code or data need to be stored permanently.

Key Features

  • Memory Size: 2 Mbit (256Kb x 8)
  • Access Time: 120 ns
  • Single 5V Power Supply: Ensures low power consumption and compatibility with standard digital circuits.
  • Programming Voltage: 12.5V ± 0.25V
  • UV Erasable: The window lid allows for exposure to ultraviolet light to erase the stored data, making the device reusable.
  • Package: The M27C2001-12F1 comes in a 32-pin Ceramic Dual In-line Package (CDIP).
  • Temperature Range: Operates within a temperature range of -40°C to +125°C, making it suitable for industrial applications.

Applications

The versatility of the M27C2001-12F1 EPROM makes it ideal for a wide array of applications, including:

  • Embedded systems
  • Microcontroller units (MCUs)
  • Automotive electronics
  • Telecommunications
  • Personal computers
  • Industrial control systems

Reliability and Quality

STMicroelectronics is known for its commitment to providing high-quality and reliable products. The M27C2001-12F1 EPROM is manufactured with this same dedication to excellence, ensuring stable and dependable performance across its lifespan. The device also includes features such as static prevention and a high level of protection against inadvertent writes, which further enhance its reliability.

Programming and Erasure

Programming the M27C2001-12F1 is accomplished via a standard EPROM programmer, and erasure requires exposing the die to UV light. The programming and erasure processes are straightforward, allowing for easy integration into product development cycles.
